Arctic Cat 300 20122012 Arctic Cat 300 specifications, pictures, reviews and rating |

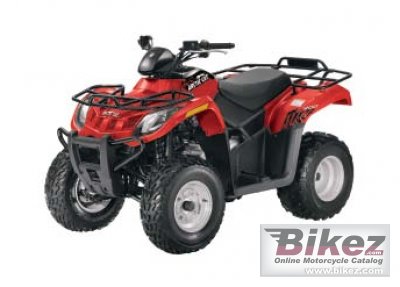

 2012 Arctic Cat 300. Picture credits - Arctic Cat. Submit more pictures. |
|
| General information | |
|---|---|
| Motorcycle name | Arctic Cat 300 |
| Year of manufacture | 2012 |
| Type | ATV |
| Rating |
Do you know this bike? Click here to rate it. We miss 1 vote to show the rating. |
| Engine and transmission | |
| Engine size | 270.0 ccm (16.48 cubic inches) |
| Type of engine | Single cylinder, four-stroke |
| Bore x stroke | 72.7 x 65.2 mm (2.9 x 2.6 inches) |
| Valves per cylinder | 2 |
| Fuel system | Carburettor |
| Fuel control | Single Overhead Cams (SOHC) |
| Cooling system | Liquid |
| Gearbox | Automatic |
| Transmission type | Belt (final drive) |
| Driveline | 2WD. Automatic CVT with Forward, Neutral and Reverse. |
| Chassis, suspension, brakes and wheels | |
| Front suspension | Double A-Arm. Adjustable Preload Shocks |
| Front wheel travel | 126 mm (5.0 inches) |
| Rear suspension | Swing arm. |
| Rear wheel travel | 126 mm (5.0 inches) |
| Front tire | 22/7-10 |
| Rear tire | 22/10-10 |
| Front brakes | Single disc. Hydraulic |
| Rear brakes | Single disc. Hydraulic |
| Physical measures and capacities | |
| Dry weight | 216.4 kg (477.1 pounds) |
| Overall height | 1118 mm (44.0 inches) |
| Overall length | 1869 mm (73.6 inches) |
| Overall width | 1050 mm (41.3 inches) |
| Ground clearance | 259 mm (10.2 inches) |
| Wheelbase | 1179 mm (46.4 inches) |
| Fuel capacity | 12.50 litres (3.30 US gallons) |
| Other specifications | |
| Color options | Red |
| Starter | Electric |
| Electrical | 12.5 amps.alternator |
| Light | Two headlights |
| Carrying capacity | Front Rack Capacity 50 lbs / 22.7 kg: Rear Rack Capacity 100 lbs / 45.4 kg: Towing Capacity 500 lbs / 226.8 kg. |
