| Arctic Cat's profilation of this bike |
| They want to be just like you. So why not give them a machine that matches their size and their passion¿ |
| General information |
|---|

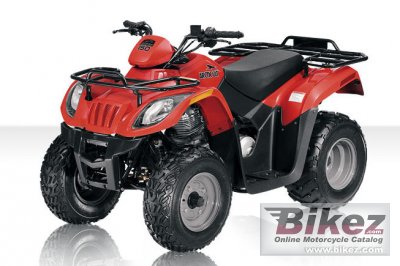

| Model: | Arctic Cat 150 Youth 2x4 |
| Year: | 2010 |
| Category: | ATV |
| Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
| Price as new (MSRP): | US$ 3349. Prices depend on country, taxes, accessories, etc. |
| Engine and transmission |
|---|
| Displacement: | 149.00 ccm (9.09 cubic inches) |
| Engine type: | Single cylinder, four-stroke |
| Compression: | 9.1:1 |
| Bore x stroke: | 62.0 x 49.5 mm (2.4 x 1.9 inches) |
| Valves per cylinder: | 2 |
| Fuel system: | Carburettor |
| Fuel control: | Single Overhead Cams (SOHC) |
| Cooling system: | Air |
| Gearbox: | Automatic |
Transmission type,
final drive: | Belt |
| Chassis, suspension, brakes and wheels |
|---|
| Front suspension: | Single A-Arm |
| Front wheel travel: | 89 mm (3.5 inches) |
| Rear suspension: | Swing Arm |
| Rear wheel travel: | 89 mm (3.5 inches) |
| Front tyre: | 21/7-10 |
| Rear tyre: | 22/10-10 |
| Front brakes: | Expanding brake (drum brake) |
| Rear brakes: | Single disc |
| Physical measures and capacities |
|---|
| Dry weight: | 386.0 kg (851.0 pounds) |
| Overall height: | 1,039 mm (40.9 inches) |
| Overall length: | 1,775 mm (69.9 inches) |
| Overall width: | 950 mm (37.4 inches) |
| Ground clearance: | 191 mm (7.5 inches) |
| Wheelbase: | 1,115 mm (43.9 inches) |
| Fuel capacity: | 8.71 litres (2.30 gallons) |
| Other specifications |
|---|
| Color options: | Red |
| Comments: | 2WD |
