Arctic Cat 150 20112011 Arctic Cat 150 specifications, pictures, reviews and rating |

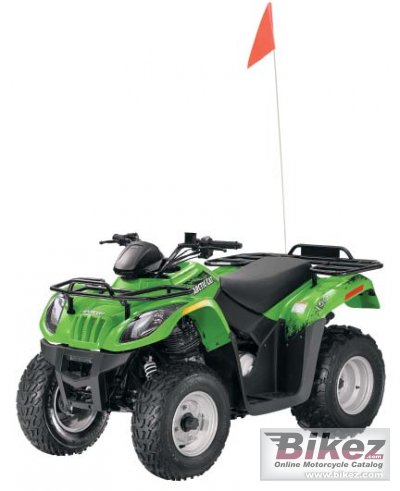

 2011 Arctic Cat 150. Picture credits - Arctic Cat. Submit more pictures. |
|
| General information | |
|---|---|
| Model | Arctic Cat 150 |
| Model year | 2011 |
| Category | ATV |
| Price as new | US$ 3399. MSRP depends on country, taxes, accessories, etc. |
| Rating |
Do you know this bike? Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission | |
| Displacement | 149.0 ccm (9.09 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Compression | 9.1:1 |
| Bore x stroke | 62.0 x 49.5 mm (2.4 x 1.9 inches) |
| Valves per cylinder | 2 |
| Fuel system | Carburettor |
| Fuel control | Single Overhead Cams (SOHC) |
| Cooling system | Air |
| Gearbox | Automatic |
| Transmission type | Belt (final drive) |
| Driveline | Automatic CVT with Forward, Neutral and Reverse. 2WD. |
| Chassis, suspension, brakes and wheels | |
| Front suspension | Single A-Arm |
| Front wheel travel | 89 mm (3.5 inches) |
| Rear suspension | Swing Arm |
| Rear wheel travel | 89 mm (3.5 inches) |
| Front tire | 21/7-10 |
| Rear tire | 22/10-10 |
| Front brakes | Expanding brake (drum brake) |
| Rear brakes | Single disc |
| Physical measures and capacities | |
| Dry weight | 175.0 kg (385.8 pounds) |
| Overall height | 1039 mm (40.9 inches) |
| Overall length | 1775 mm (69.9 inches) |
| Overall width | 950 mm (37.4 inches) |
| Ground clearance | 191 mm (7.5 inches) |
| Wheelbase | 1115 mm (43.9 inches) |
| Fuel capacity | 8.71 litres (2.30 US gallons) |
| Other specifications | |
| Color options | Lime |
| Starter | Electric |
| Electrical | Alternator Capacity: 12.5 amps |
| Carrying capacity | Front Rack Capacity 25 lbs / 11.3 kg. Rear Rack Capacity 50 lbs / 22.7 kg. Towing Capacity 300 lbs / 136 kg |
