General information |
Model name
|

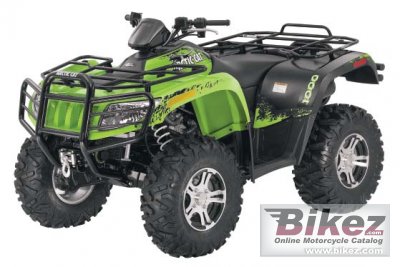

Arctic Cat 1000 LTD |
Year model
|
2011 |
Type
|
ATV |
Price as new | US$ 12299. MSRP depends on country, taxes, accessories, etc. |
Rating
|
Do you know this bike? Click here to rate it. We miss 1 vote to show the rating. |
Engine and transmission |
Engine size
|
951.0 ccm (58.03 cubic inches) |
Type of engine
|
V2, four-stroke |
Bore x stroke
|
92.0 x 71.6 mm (3.6 x 2.8 inches) |
Valves per cylinder
|
4 |
Fuel system
|
Injection. EFI |
Fuel control
|
Single Overhead Cams (SOHC) |
Cooling system
|
Liquid |
Gearbox
|
Automatic |
Transmission type
|
Belt (final drive) |
Driveline
|
Automatic CVT with EBS, Hi/Lo Range and Reverse. 2/4 WD + Diff Lock |
Chassis, suspension, brakes and wheels |
Front suspension
|
Double A-Arm |
Front wheel travel
|
254 mm (10.0 inches) |
Rear suspension
|
Double A-Arm |
Rear wheel travel
|
254 mm (10.0 inches) |
Front tire
|
25/8-12 |
Rear tire
|
25/10-12 |
Front brakes
|
Single disc. Hydraulic |
Rear brakes
|
Single disc. Hydraulic |
Physical measures and capacities |
Dry weight
|
350.2 kg (772.1 pounds) |
Overall height
|
1219 mm (48.0 inches) |
Overall length
|
2197 mm (86.5 inches) |
Overall width
|
1206 mm (47.5 inches) |
Ground clearance
|
279 mm (11.0 inches) |
Wheelbase
|
1334 mm (52.5 inches) |
Fuel capacity
|
20.10 litres (5.31 US gallons) |
Other specifications |
Color options
|
Sublime Green/Black Metallic Paint |
Starter
|
Electric |
Carrying capacity
|
Front Rack Capacity 100 lbs / 45.4 kg. Rear Rack Capacity 200 lbs / 90.8 kg. Towing Capacity 1,050 lbs / 476.3 kg |
Comments
|
Power Steering, Aluminum Wheels, Front and Rear Bumpers, Winch, Maxxis Big Horn 2.0 Tires. |
