General information |
|
Motorcycle name
|

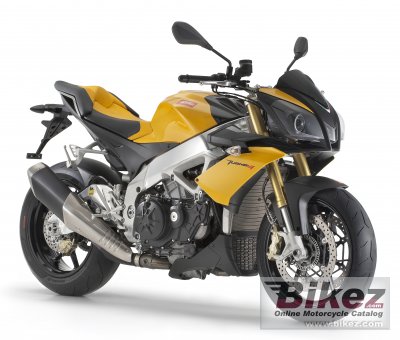

Aprilia Tuono V4 R APRC |
|
Model year
|
2013 |
|
Category
|
Naked bike |
|
Rating
|
3.7 See the detailed rating of engine performance, design and look, accident risk, etc. Compare with any other motorcycle. |
|
Engine and transmission |
|
Displacement
|
999.6 ccm (61.00 cubic inches) |
|
Engine type
|
V4, four-stroke |
|
Engine details
|
Longitudinal 65° V-4 |
|
Power output
|
167.3 HP (122.1 kW)) @ 11500 RPM |
|
Torque
|
111.5 Nm (11.4 kgf-m or 82.2 ft.lbs) @ 9500 RPM |
|
Max RPM
|
12300 |
|
Compression
|
13.0:1 |
|
Bore x stroke
|
78.0 x 52.3 mm (3.1 x 2.1 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection. Airbox with front dynamic air intakes. 4 Weber-Marelli 48-mm throttle bodies with 4 injectors and latest generation Ride-by-Wire engine management. Choice of three different engine maps selectable by the rider with bike in motion: T (Track), S (Sport), R |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Ignition
|
Magneti Marelli digital electronic ignition system integrated in engine control system, with one spark plug per cylinder and “stick-coil” type coils |
|
Lubrication system
|
Wet sump lubrication system with oil radiator and two oil pumps (lubrication and cooling) |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Multiplate wet clutch with mechanical slipper system. |
|
Driveline
|
Straight cut gears and integrated flexible coupling, drive ratio: 73/44 primary drive. Chain 42/16 final drive. |
|
Fuel consumption
|
8.07 litres/100 km (12.4 km/l or 29.15 mpg) |
|
Greenhouse gases
|
187.2 CO2 g/km. (CO2 - Carbon dioxide emission) |
|
Emission details
|
Integrated catalytic converter |
|
Exhaust system
|
4 into 2 into 1 layout, single oxygen sensor, lateral single silencer with ECU-controlled bypass valve and integrated trivalent catalytic converter (Euro 3) |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Aluminium dual beam chassis with cast and pressed sheet elements. (Sachs steering damper on APRC version) |
|
Rake (fork angle)
|
25.0° |
|
Trail
|
108 mm (4.2 inches) |
|
Front suspension
|
Sachs upside down front fork with diam. 43 mm stanchions. Forged aluminium calliper mountings for radial callipers. Completely adjustable spring preload and hydraulic compression and rebound damping. |
|
Front wheel travel
|
120 mm (4.7 inches) |
|
Rear suspension
|
Sachs piggy back monoshock with completely adjustable: spring preload and hydraulic compression and rebound damping. APS progressive linkage |
|
Rear wheel travel
|
130 mm (5.1 inches) |
|
Front tire
|
120/70-ZR17 |
|
Rear tire
|
190/55-ZR17 |
|
Front brakes
|
Double disc. Floating stainless steel discs with lightweight stainless steel rotor with 6 studs. Brembo radial callipers with 4 diam. horizontally opposed 32 mm pistons. Sintered pads. Axial pump master cylinder and metal braided brake hoses. |
|
Diameter
|
320 mm (12.6 inches) |
|
Rear brakes
|
Single disc. Brembo floating calliper with two and #61638;32 mm isolated pistons. Pump with integrated tank and metal braided hose. |
|
Diameter
|
220 mm (8.7 inches) |
|
Wheels
|
Cast aluminium wheels with 3 split spoke design. Front.:3.5”X17” Rear:6.00”X17” |
|
Physical measures and capacities |
|
Dry weight
|
183.0 kg (403.4 pounds) |
|
Power/weight ratio
|
0.9142 HP/kg |
|
Seat height
|
835 mm (32.9 inches) If adjustable, lowest setting. |
|
Overall height
|
1090 mm (42.9 inches) |
|
Overall length
|
2065 mm (81.3 inches) |
|
Ground clearance
|
125 mm (4.9 inches) |
|
Wheelbase
|
1445 mm (56.9 inches) |
|
Fuel capacity
|
17.00 litres (4.49 US gallons) |
|
Reserve fuel capacity
|
4.00 litres (1.06 US gallons) |
|
Other specifications |
|
Color options
|
Nero Competition, White, Sunlit Yellow |
|
Starter
|
Electric |
|
Electrical
|
Flywheel mounted 420W alternator with rare earth magnets. |
|
Comments
|
APRC (Aprilia Performance Ride Control), which includes: AWC (Aprilia Wheelie Control), ATC (Aprilia Traction Control), ALC (Aprilia Launch Control) and AQS (Aprilia Quickshift System).
|
