General information |
|
Model
|

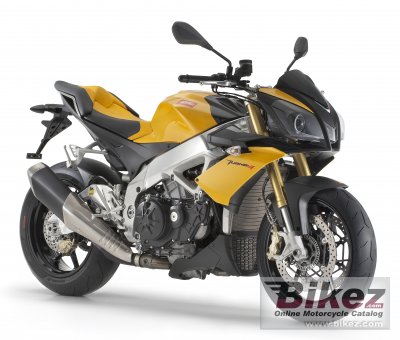

Aprilia Tuono V4 R |
|
Year model
|
2013 |
|
Type
|
Naked bike |
|
Rating
|
3.7 See the detailed rating of engine performance, design and look, accident risk, etc. Compare with any other motorcycle. |
|
Engine and transmission |
|
Engine size
|
999.6 ccm (61.00 cubic inches) |
|
Type of engine
|
V4, four-stroke |
|
Engine details
|
Longitudinal 65° V-4 |
|
Effect
|
165.0 HP (120.4 kW)) @ 11500 RPM |
|
Torque
|
110.0 Nm (11.2 kgf-m or 81.1 ft.lbs) @ 9500 RPM |
|
Compression
|
13.0:1 |
|
Bore x stroke
|
78.0 x 52.2 mm (3.1 x 2.1 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection. Four Weber-Marelli 48mm throttle bodies with four injectors. Airbox with front dynamic air intakes. |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Ignition
|
Ride-by-wire engine management with three selectable maps – Track, Sport, Road |
|
Lubrication system
|
Wet sump lubrication system with oil radiator and two oil pumps |
|
Cooling system
|
Oil & air |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Slipper clutch, Aprilia Quick Shift system |
|
Driveline
|
Straight cut gears and integrated flexible coupling, drive ratio: 73/44 primay drive. Chain 42/16 final drive. |
|
Exhaust system
|
4 into 2 into 1 layout, single oxygen sensor |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Aluminium dual beam chassis with cast and pressed sheet elements. |
|
Rake (fork angle)
|
25.0° |
|
Trail
|
108 mm (4.2 inches) |
|
Front suspension
|
Sachs, 43mm titanium nitride (TiN) USD fork, fully adjustable for compression and rebound damping, and preload |
|
Front wheel travel
|
120 mm (4.7 inches) |
|
Rear suspension
|
Double braced aluminium swingarm; mixed low thickness and sheet casting technology. Sachs piggy back monoshock with completely adjustable: spring preload and hydraulic compression and rebound damping. APS progressive linkage. |
|
Rear wheel travel
|
130 mm (5.1 inches) |
|
Front tire
|
120/70-17. |
|
Rear tire
|
190/55-17 |
|
Front brakes
|
Double disc. Floating stainless steel discs with lightweight stainless steel rotor with 6 studs |
|
Diameter
|
320 mm (12.6 inches) |
|
Rear brakes
|
Single disc. Floating calliper with two and #61638;32 mm isolated pistons |
|
Diameter
|
220 mm (8.7 inches) |
|
Wheels
|
Cast aluminium wheels with 3 split spoke |
|
Physical measures and capacities |
|
Dry weight
|
183.0 kg (403.4 pounds) |
|
Power/weight ratio
|
0.9014 HP/kg |
|
Seat height
|
840 mm (33.1 inches) If adjustable, lowest setting. |
|
Overall height
|
1100 mm (43.3 inches) |
|
Overall length
|
2060 mm (81.1 inches) |
|
Overall width
|
800 mm (31.5 inches) |
|
Ground clearance
|
120 mm (4.7 inches) |
|
Wheelbase
|
1440 mm (56.7 inches) |
|
Fuel capacity
|
17.00 litres (4.49 US gallons) |
|
Reserve fuel capacity
|
4.00 litres (1.06 US gallons) |
|
Other specifications |
|
Color options
|
Black, White, Yellow |
|
Starter
|
Electric |
|
Electrical
|
Flywheel mounted 420W alternator with rare earth magnets |
