General information |
---|

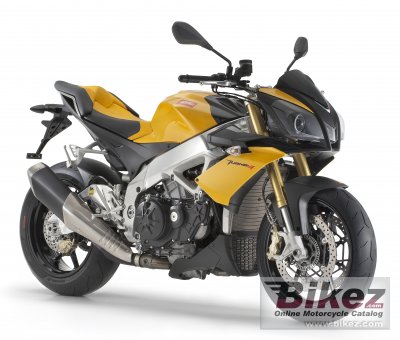

Model | Aprilia Tuono V4 R |
Year | 2012 |
Category | Naked bike |
Rating | 3.7 See the detailed rating of engine performance, design and look, accident risk, etc. Compare with any other motorcycle. |
Engine and transmission |
---|
Displacement | 999.0 ccm (60.96 cubic inches) |
Engine type | V4, four-stroke |
Engine details | Longitudinal 65° V twin |
Power | 162.0 HP (118.2 kW)) @ 11000 RPM |
Torque | 110.0 Nm (11.2 kgf-m or 81.1 ft.lbs) @ 9000 RPM |
Compression | 13.0:1 |
Bore x stroke | 78.0 x 52.2 mm (3.1 x 2.1 inches) |
Valves per cylinder | 4 |
Fuel system | Injection. Four Weber-Marelli 48mm throttle bodies with four injectors. Airbox with front dynamic air intakes. |
Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
Ignition | Ride-by-wire engine management with three selectable maps – Track, Sport, Road |
Lubrication system | Wet sump lubrication system with oil radiator and two oil pumps |
Cooling system | Oil & air |
Gearbox | 6-speed |
Transmission type | Chain (final drive) |
Clutch | Slipper clutch, Aprilia Quick Shift system |
Driveline | Straight cut gears and integrated flexible coupling, drive ratio: 73/44 primay drive. Chain 42/16 final drive. |
Exhaust system | 4 into 2 into 1 layout, single oxygen sensor |
Chassis, suspension, brakes and wheels |
---|
Frame type | Aluminium dual beam chassis with cast and pressed sheet elements. |
Rake (fork angle) | 25.0° |
Trail | 108 mm (4.2 inches) |
Front suspension | Sachs, 43mm titanium nitride (TiN) USD fork, fully adjustable for compression and rebound damping, and preload |
Front wheel travel | 120 mm (4.7 inches) |
Rear suspension | Monoshock, fully adjustable for compression and rebound damping, and preload |
Rear wheel travel | 130 mm (5.1 inches) |
Front tire | 120/70-17. |
Rear tire | 190/55-17 |
Front brakes | Double disc. Brembo monobloc calipers |
Diameter | 320 mm (12.6 inches) |
Rear brakes | Single disc. Bremo |
Diameter | 220 mm (8.7 inches) |
Wheels | Cast aluminium wheels with 3 split spoke |
Physical measures and capacities |
---|
Dry weight | 183.0 kg (403.4 pounds) |
Power/weight ratio | 0.8852 HP/kg |
Seat height | 840 mm (33.1 inches) If adjustable, lowest setting. |
Overall height | 1100 mm (43.3 inches) |
Overall length | 2060 mm (81.1 inches) |
Overall width | 800 mm (31.5 inches) |
Ground clearance | 120 mm (4.7 inches) |
Wheelbase | 1440 mm (56.7 inches) |
Fuel capacity | 17.00 litres (4.49 US gallons) |
Reserve fuel capacity | 4.00 litres (1.06 US gallons) |
Other specifications |
---|
Color options | Black, White, Yellow |
Starter | Electric |
Electrical | Flywheel mounted 420W alternator with rare earth magnets |
Comments | Traction control. |
