General information |
|
Motorcycle name
|

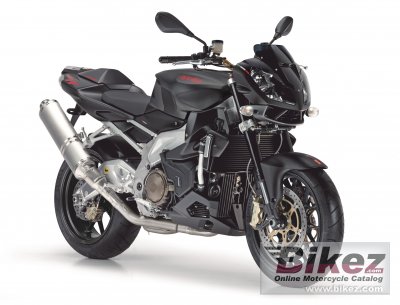

Aprilia Tuono R |
|
Year of manufacture
|
2009 |
|
Type
|
Naked bike |
|
Rating
|
3.4 See the detailed rating of engine performance, design and look, accident risk, etc. Compare with any other motorcycle. |
|
Engine and transmission |
|
Engine size
|
997.6 ccm (60.87 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Output
|
136.8 HP (99.8 kW)) @ 9500 RPM |
|
Torque
|
107.0 Nm (10.9 kgf-m or 78.9 ft.lbs) @ 8500 RPM |
|
Compression
|
11.8:1 |
|
Bore x stroke
|
97.0 x 67.5 mm (3.8 x 2.7 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection. Integrated electronic engine management system. Indirect multi-point electronic fuel injection. 57 mm diameter throttle bodies. 10.3 litre airbox with Air Runner ram air intake. |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Ignition
|
Digital electronic ignition, integrated with the fuel injection system. One spark plug per cylinder. |
|
Lubrication system
|
Dry sump with separate oil reservoir. Double trochoid pump with oil cooler. Steel oil reservoir. |
|
Cooling system
|
Oil & air |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Multiple disc in oil bath with patented PPC power-assisted hydraulic control. Metal braided clutch hose. Radial master cylinder. |
|
Exhaust system
|
Two silencers with three way catalytic converter and lambda probe oxygen sensor (Euro 3). |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Box section sloping twin-spar frame in aluminium alloy. |
|
Rake (fork angle)
|
25.0° |
|
Trail
|
104 mm (4.1 inches) |
|
Front suspension
|
Showa 43 mm upside-down fork with adjustment for spring preload, compression and rebound damping. |
|
Front wheel travel
|
120 mm (4.7 inches) |
|
Rear suspension
|
Aluminium alloy double member swingarm. APS (Aprilia Progressive System) rising rate linkages. Öhlins Racing piggy-back monoshock with adjustment for spring preload, compression and rebound damping. Wheel travel 133 mm. |
|
Front tire
|
120/70-ZR17 |
|
Rear tire
|
180/55-ZR17 |
|
Front brakes
|
Double disc. Bremo |
|
Diameter
|
320 mm (12.6 inches) |
|
Rear brakes
|
Single disc. Bremo |
|
Diameter
|
220 mm (8.7 inches) |
|
Physical measures and capacities |
|
Dry weight
|
185.0 kg (407.9 pounds) |
|
Power/weight ratio
|
0.7394 HP/kg |
|
Seat height
|
810 mm (31.9 inches) If adjustable, lowest setting. |
|
Overall height
|
1100 mm (43.3 inches) |
|
Overall length
|
2025 mm (79.7 inches) |
|
Wheelbase
|
1410 mm (55.5 inches) |
|
Fuel capacity
|
18.00 litres (4.76 US gallons) |
|
Reserve fuel capacity
|
4.00 litres (1.06 US gallons) |
|
Other specifications |
|
Color options
|
White, blue, black |
|
Starter
|
Electric |
