General information |
---|

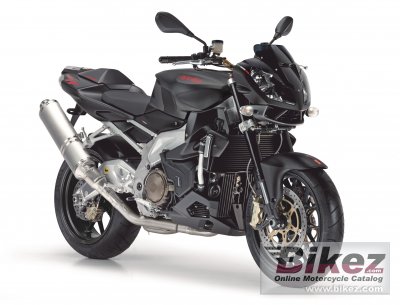

Model | Aprilia Tuono 1000 R |
Year | 2011 |
Category | Naked bike |
Rating | 3.5 See the detailed rating of engine performance, design and look, accident risk, etc. Compare with any other motorcycle. |
Engine and transmission |
---|
Displacement | 997.6 ccm (60.87 cubic inches) |
Engine type | V2, four-stroke |
Engine details | V60 Magnesium Evolution. Longitudinal 60° V twin |
Power | 136.8 HP (99.8 kW)) @ 9500 RPM |
Torque | 107.0 Nm (10.9 kgf-m or 78.9 ft.lbs) @ 8500 RPM |
Compression | 11.8:1 |
Bore x stroke | 97.0 x 67.5 mm (3.8 x 2.7 inches) |
Valves per cylinder | 4 |
Fuel system | Injection. Integrated electronic engine management system. Indirect multi-point electronic injection. 57 mm diameter throttle bodies. |
Ignition | Digital electronic ignition, integrated with the injection control system. One spark plug per cylinder. |
Lubrication system | Dry sump with separate oil reservoir. Double trochoid pump with oil cooler. Steel oil reservoir |
Cooling system | Oil & air |
Gearbox | 6-speed |
Transmission type | Chain (final drive) |
Clutch | Multiple disc in oil bath with patented PPC power-assisted hydraulic control. Metal braid clutch line. Radial master cylinder with 15 mm piston. |
Driveline | Primary drive: Spur gears. Transmission ratio: 60/31 (1.935:1). Final drive: Chain Transmission ratio: 40/16 (2.5:1). |
Exhaust system | Two silencers with three way catalytic converter and lambda probe oxygen sensor (Euro 3). |
Chassis, suspension, brakes and wheels |
---|
Frame type | Box section sloping twin-spar frame in aluminium alloy. |
Rake (fork angle) | 25.0° |
Trail | 104 mm (4.1 inches) |
Front suspension | Showa 43 mm upside-down fork with adjustment for spring preload, compression and rebound damping. |
Rear suspension | Aluminium alloy double banana swingarm. APS (Aprilia Progressive System) rising rate linkages. Sachs hydraulic monoshock with adjustment for spring preload and rebound damping. |
Front tire | 120/70-17. |
Rear tire | 190/50-17 |
Front brakes | Double disc |
Diameter | 320 mm (12.6 inches) |
Rear brakes | Single disc |
Diameter | 220 mm (8.7 inches) |
Physical measures and capacities |
---|
Dry weight | 185.0 kg (407.9 pounds) |
Power/weight ratio | 0.7394 HP/kg |
Seat height | 810 mm (31.9 inches) If adjustable, lowest setting. |
Overall height | 1100 mm (43.3 inches) |
Overall length | 2025 mm (79.7 inches) |
Overall width | 830 mm (32.7 inches) |
Wheelbase | 1410 mm (55.5 inches) |
Fuel capacity | 18.00 litres (4.76 US gallons) |
Other specifications |
---|
Color options | Diablo black, Ice white |
Starter | Electric |
