| Aprilia's profilation of this bike |
| The single overhead cam configuration with four titanium valves per cylinder head represents an ideal compromise between compact size, light weight and high performance. |
|
General information |
|
Model name
|

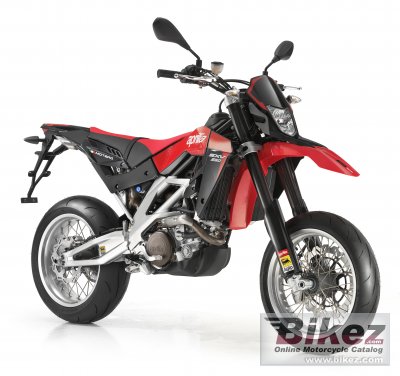

Aprilia SXV 5.5 |
|
Year of manufacture
|
2009 |
|
Type
|
Super motard |
|
Rating
|
2.8 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
550.0 ccm (33.56 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection. Electronic with 40mm throttle bodies |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Lubrication system
|
Dry sump with external oil tank. Separate gearbox lubrication. |
|
Cooling system
|
Liquid |
|
Gearbox
|
5-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Cable operated multi-plate wet clutch. |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
48 mm upside down fork with two adjustments. |
|
Rear suspension
|
Box section aluminium swingarm with cast body. Hydraulic monoshock with compression and rebound adjustment. |
|
Front tire
|
120/70-17 |
|
Rear tire
|
180/55-17 |
|
Front brakes
|
Single disc |
|
Diameter
|
320 mm (12.6 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
240 mm (9.4 inches) |
|
Physical measures and capacities |
|
Seat height
|
918 mm (36.1 inches) If adjustable, lowest setting. |
|
Overall length
|
2220 mm (87.4 inches) |
|
Wheelbase
|
1495 mm (58.9 inches) |
|
Fuel capacity
|
7.80 litres (2.06 US gallons) |
|
Other specifications |
|
Color options
|
Black |
|
Starter
|
Electric |
