| Aprilia's profilation of this bike |
| The SXV is not just a pretty face. Your gaze is held by an abundance of advanced technology. One glance at the V2 engine, mixed trellis and aluminium frame, mighty swingarm and central exhaust system with twinned silencers under the rear mudguard, and you cannot escape its magical attraction.
Whatever side you look at it from, the SXV presents a host of stunning technical solutions, all enhanced by original racing colours to express the aggressive nature of this born-to-race mean machine. |
|
General information |
|
Model name
|

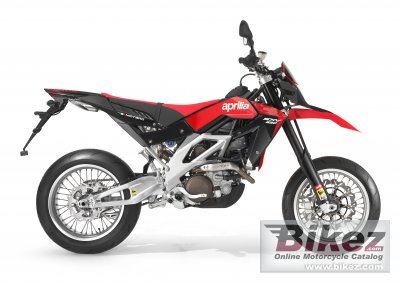

Aprilia SXV 4.5 |
|
Year of manufacture
|
2012 |
|
Type
|
Super motard |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
|
Engine and transmission |
|
Engine size
|
452.0 ccm (27.58 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Engine details
|
77° V twin. 4 valve heads with titanium valves. Titanium valve cover screws. Cylinders integrated in the crankcase with wet liners. |
|
Maximum RPM
|
12500 |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection. Electronic fuel injection with 38 mm throttle bodies |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Lubrication system
|
Dry sump with external oil tank. Separate gearbox lubrication. |
|
Cooling system
|
Liquid |
|
Gearbox
|
5-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Cable operated multi-plate wet clutch. |
|
Driveline
|
Primary drive: Spur gears. Transmission ratio: 22/56. |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Steel perimeter frame with aluminium alloy vertical members. |
|
Front suspension
|
48 mm upside down fork with two adjustments. |
|
Rear suspension
|
Box section aluminium swingarm with cast body. Hydraulic monoshock with compression and rebound adjustment. |
|
Front tire
|
120/70-17 |
|
Rear tire
|
180/55-17 |
|
Front brakes
|
Single disc |
|
Diameter
|
320 mm (12.6 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
240 mm (9.4 inches) |
|
Physical measures and capacities |
|
Seat height
|
918 mm (36.1 inches) If adjustable, lowest setting. |
|
Overall length
|
2222 mm (87.5 inches) |
|
Overall width
|
800 mm (31.5 inches) |
|
Ground clearance
|
318 mm (12.5 inches) |
|
Wheelbase
|
1495 mm (58.9 inches) |
|
Fuel capacity
|
7.80 litres (2.06 US gallons) |
|
Other specifications |
|
Color options
|
Black |
|
Starter
|
Electric |
|
Electrical
|
340W generator |
