| Aprilia's profilation of this bike |
| As you would expect from Aprilia, the latest SXV is packed with intelligent design solutions. Fixed air ducts, for example, allow the fuel tank to tilt up for easy access to the airbox. And the quest for technical perfection has led the design team to tweak even small details on the basis of input from the champions who have raced the SXV. |
|
General information |
|
Model name
|

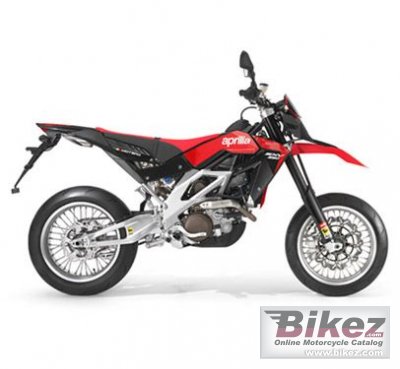

Aprilia SXV 4.5 |
|
Model year
|
2010 |
|
Category
|
Super motard |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Displacement
|
452.0 ccm (27.58 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Max RPM
|
12500 |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection. Electronic fuel injection with 38 mm throttle bodies |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Lubrication system
|
Dry sump with external oil tank. Separate gearbox lubrication. |
|
Cooling system
|
Liquid |
|
Gearbox
|
5-speed |
|
Clutch
|
Cable operated multi-plate wet clutch. |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Steel perimeter frame with aluminium alloy vertical members. |
|
Front suspension
|
48 mm upside down fork with two adjustments. |
|
Rear suspension
|
Box section aluminium swingarm with cast body. Hydraulic monoshock with compression and rebound adjustment. |
|
Front tire
|
120/70-17 |
|
Rear tire
|
180/55-17 |
|
Front brakes
|
Single disc |
|
Diameter
|
320 mm (12.6 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
240 mm (9.4 inches) |
|
Physical measures and capacities |
|
Seat height
|
918 mm (36.1 inches) If adjustable, lowest setting. |
|
Overall length
|
2222 mm (87.5 inches) |
|
Overall width
|
800 mm (31.5 inches) |
|
Wheelbase
|
1495 mm (58.9 inches) |
|
Fuel capacity
|
7.80 litres (2.06 US gallons) |
|
Other specifications |
|
Color options
|
Black |
|
Starter
|
Electric |
