General information |
Model
|

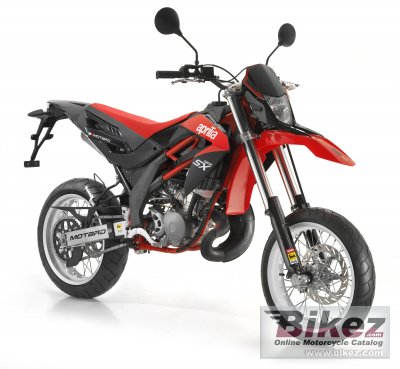

Aprilia SX 125 |
Year model
|
2012 |
Type
|
Super motard |
Rating
|
3.3 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
Engine and transmission |
Engine size
|
124.8 ccm (7.62 cubic inches) |
Type of engine
|
Single cylinder, two-stroke |
Engine details
|
Rotax 122: Aluminium cylinder with Nikasil coated liner. Reed valve intake. |
Effect
|
22.4 HP (16.4 kW)) @ 10000 RPM |
Torque
|
16.0 Nm (1.6 kgf-m or 11.8 ft.lbs) @ 9750 RPM |
Top speed
|
120.0 km/h (74.6 mph) |
Compression
|
12.5:1 |
Bore x stroke
|
54.0 x 54.5 mm (2.1 x 2.1 inches) |
Fuel system
|
Injection. ECU AC34 |
Ignition
|
Electronic CDI ignition. |
Lubrication system
|
Separate mixing with variable displacement, volumetric pump. |
Cooling system
|
Liquid |
Gearbox
|
6-speed |
Transmission type
|
Chain (final drive) |
Clutch
|
Multi-plate wet clutch. |
Driveline
|
Primary drive: Gearbox: 63/19 (3.32). Final drive: Chain: 15/45 (3.00) |
Emission details
|
Euro 3, two catalysts and secondary air system. |
Chassis, suspension, brakes and wheels |
Frame type
|
High strength steel frame with double trellis beam and double cradle. Detachable seat frame. |
Front suspension
|
40 mm upside down hydraulic fork. |
Front wheel travel
|
260 mm (10.2 inches) |
Rear suspension
|
Steel swingarm. Hydraulic monoshock with piggy back cylinder. |
Rear wheel travel
|
265 mm (10.4 inches) |
Front tire
|
110/70-R17 |
Rear tire
|
150/60-R17 |
Front brakes
|
Single disc. Floating caliper with two parallel pistons |
Diameter
|
260 mm (10.2 inches) |
Rear brakes
|
Single disc. Floating caliper with single piston |
Diameter
|
220 mm (8.7 inches) |
Wheels
|
Aluminium spoke rims; 3.00x17 / 4.25x17 |
Physical measures and capacities |
Dry weight
|
118.0 kg (260.1 pounds) |
Weight incl. oil, gas, etc
|
126.0 kg (277.8 pounds) |
Power/weight ratio
|
0.1898 HP/kg |
Seat height
|
870 mm (34.3 inches) If adjustable, lowest setting. |
Overall height
|
1145 mm (45.1 inches) |
Overall length
|
2188 mm (86.1 inches) |
Overall width
|
840 mm (33.1 inches) |
Ground clearance
|
260 mm (10.2 inches) |
Wheelbase
|
1480 mm (58.3 inches) |
Fuel capacity
|
10.00 litres (2.64 US gallons) |
Reserve fuel capacity
|
3.00 litres (0.79 US gallons) |
Oil capacity
|
0.60 litres (0.63 US quarts) |
Other specifications |
Color options
|
Black |
Starter
|
Kick |
Electrical
|
12V 180W generator. |
