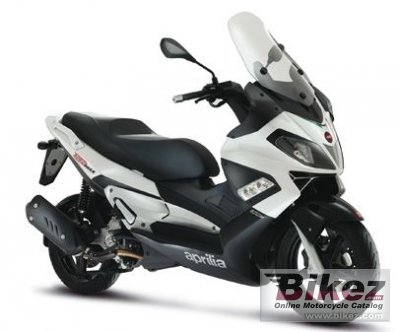

| Aprilia's profilation of this bike |
| The compact but light nose holds the aesthetic dynamism of the headlight assembly: A silver coloured grille is inserted between the two lights, a simple, thin screen which gives the SR Max 125 cc an energetic expression. The graphics which encompass the light and the air intakes create a ´contrast´ with the vehicle colouring, together with the ´three-coloured´ scheme, which are flaunted on the upper part of the shield, give the SR Max elegance and an unmistakable style. |
|
General information |
|
Model name
|
Aprilia SR Max 125 |
|
Year model
|
2013 |
|
Type
|
Scooter |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
|
Engine and transmission |
|
Engine size
|
124.0 ccm (7.57 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Effect
|
15.0 HP (10.9 kW)) @ 9250 RPM |
|
Compression
|
11.5:1 |
|
Bore x stroke
|
57.0 x 48.6 mm (2.2 x 1.9 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection. EFI |
|
Fuel control
|
Overhead Cams (OHC) |
|
Lubrication system
|
Wet sump. |
|
Gearbox
|
Automatic |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
Automatic centrifugal dry clutch |
|
Emission details
|
Euro 3 |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Double cradle trellis in high strength steel tubing |
|
Front suspension
|
35 mm Ø hydraulic telescopic fork |
|
Rear suspension
|
Double hydraulic shock absorber with three-position spring preload adjustment |
|
Front tire
|
120/70-15 |
|
Rear tire
|
140/60-14 |
|
Front brakes
|
Single disc |
|
Diameter
|
260 mm (10.2 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
220 mm (8.7 inches) |
|
Seat
|
Two-colour saddle made from a sport fabric with highly ergonomics equipped with lumbar support for the rider, |
|
Physical measures and capacities |
|
Seat height
|
815 mm (32.1 inches) If adjustable, lowest setting. |
|
Overall height
|
1515 mm (59.6 inches) |
|
Overall length
|
2110 mm (83.1 inches) |
|
Overall width
|
780 mm (30.7 inches) |
|
Fuel capacity
|
15.50 litres (4.10 US gallons) |
|
Reserve fuel capacity
|
2.80 litres (0.74 US gallons) |
|
Other specifications |
|
Color options
|
Black, White |
|
Starter
|
Electric |
|
Electrical
|
Generator: 300 W |
|
Comments
|
Windscreen. |
