| Aprilia's profilation of this bike |
| Maybe you’re one of those who remove original transfers and put your own stickers on instead. With all the trouble that Aprilia takes to give you such great graphics! Oh well, that’s up to you! But we’d like to know that we’ve styled your new SR in a way can be proud of, with an uncompromising sports look to reflect its cutting-edge technology, we’ve even designed a completely new steel frame for improved rigidity for unrivalled agility. |
|
General moped information |
|
Model
|

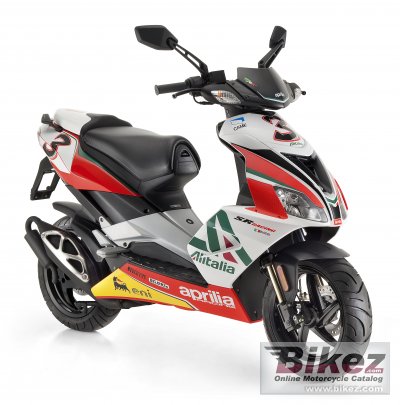

Aprilia SR 50 R Replica SBK |
|
Year model
|
2013 |
|
Type
|
Scooter |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
|
Engine and transmission |
|
Engine size
|
49.0 ccm (2.99 cubic inches) |
|
Type of engine
|
Single cylinder, two-stroke |
|
Engine details
|
Reed valve |
|
Compression
|
12.1:1 |
|
Bore x stroke
|
40.0 x 39.3 mm (1.6 x 1.5 inches) |
|
Fuel system
|
Carburettor. Dell’Orto PHVA 17.5 |
|
Ignition
|
CDI |
|
Lubrication system
|
Separate mixing with mechanical oil pump |
|
Cooling system
|
Liquid |
|
Gearbox
|
Automatic |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
Automatic centrifugal dry clutch |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Split single cradle frame in high tensile strength steel tube |
|
Front suspension
|
Hydraulic fork |
|
Front wheel travel
|
90 mm (3.5 inches) |
|
Rear suspension
|
Engine unit acting as swingarm; frame linkages on two radial silent block mountings. |
|
Rear wheel travel
|
70 mm (2.8 inches) |
|
Front tire
|
130/60-13 |
|
Rear tire
|
130/60-13 |
|
Front brakes
|
Single disc. Stainless steel disc; racing caliper with twin opposed 32 mm pistons. |
|
Diameter
|
190 mm (7.5 inches) |
|
Rear brakes
|
Single disc. Stainless steel disc; racing caliper with twin opposed 30 mm pistons. |
|
Diameter
|
190 mm (7.5 inches) |
|
Wheels
|
Five spoke, light alloy |
|
Physical measures and capacities |
|
Seat height
|
820 mm (32.3 inches) If adjustable, lowest setting. |
|
Overall height
|
1120 mm (44.1 inches) |
|
Overall length
|
1860 mm (73.2 inches) |
|
Overall width
|
705 mm (27.8 inches) |
|
Wheelbase
|
1290 mm (50.8 inches) |
|
Fuel capacity
|
7.00 litres (1.85 US gallons) |
|
Other specifications |
|
Color options
|
Red
|
|
Starter
|
Electric |
|
Instruments
|
Digital |
|
Electrical
|
Generator: Flywheel-magneto, 70 W – 12 V. |
|
Light
|
35 watt headlights |
