General information |
|
Motorcycle name
|

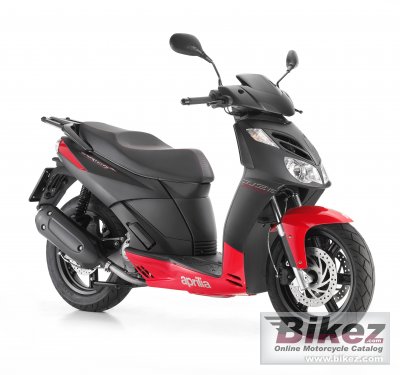

Aprilia SportCity Cube 300 |
|
Year of manufacture
|
2011 |
|
Type
|
Scooter |
|
Rating
|
2.7 View the detailed rating of value for money, design and look, reliability, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
278.3 ccm (16.98 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Output
|
22.1 HP (16.1 kW)) @ 8000 RPM |
|
Torque
|
22.0 Nm (2.2 kgf-m or 16.2 ft.lbs) @ 6500 RPM |
|
Compression
|
11.5:1 |
|
Bore x stroke
|
75.0 x 63.0 mm (3.0 x 2.5 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection |
|
Fuel control
|
Overhead Valves (OHV) |
|
Ignition
|
Electronic inductive discharge ignition with variable advance |
|
Lubrication system
|
Wet sump. Forced circulation with mechanical pump |
|
Cooling system
|
Liquid |
|
Gearbox
|
Automatic |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
Automatic centrifugal dry clutch |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Split single cradle frame in high tensile strength steel tube |
|
Front suspension
|
Hydraulic telescopic fork with 35 mm stanchions. |
|
Rear suspension
|
Engine unit acting as swingarm. Double hydraulic shock absorber with adjustable spring preload. Wheel travel 80 mm |
|
Front tire
|
120/70-15 |
|
Rear tire
|
130/80-15 |
|
Front brakes
|
Double disc |
|
Diameter
|
260 mm (10.2 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
220 mm (8.7 inches) |
|
Wheels
|
Light alloy. Front: 2.5 x 15´. Rear: 3 x 15´. |
|
Physical measures and capacities |
|
Seat height
|
815 mm (32.1 inches) If adjustable, lowest setting. |
|
Overall length
|
1985 mm (78.1 inches) |
|
Overall width
|
890 mm (35.0 inches) |
|
Wheelbase
|
1360 mm (53.5 inches) |
|
Fuel capacity
|
9.00 litres (2.38 US gallons) |
|
Reserve fuel capacity
|
1.50 litres (0.40 US gallons) |
|
Other specifications |
|
Color options
|
Escape Grey, Aprilia Black, Glam White, Black Line |
|
Starter
|
Electric |
