General information |
---|

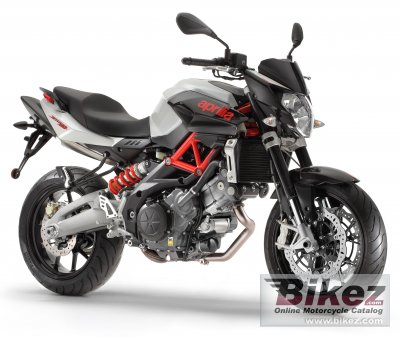

Model | Aprilia Shiver 750 |
Year | 2013 |
Category | Naked bike |
Rating | 3.5 See the detailed rating of engine performance, design and look, accident risk, etc. Compare with any other motorcycle. |
Engine and transmission |
---|
Displacement | 749.9 ccm (45.76 cubic inches) |
Engine type | V2, four-stroke |
Engine details | Longitudinal 90° V-twin |
Power | 95.0 HP (69.3 kW)) @ 9000 RPM |
Torque | 82.0 Nm (8.4 kgf-m or 60.5 ft.lbs) @ 7000 RPM |
Compression | 11.0:1 |
Bore x stroke | 92.0 x 56.4 mm (3.6 x 2.2 inches) |
Valves per cylinder | 4 |
Fuel system | Injection. Ride by Wire integrated engine control system. |
Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
Ignition | Digital electronic, integrated with the injection |
Lubrication system | Wet sump |
Cooling system | Liquid |
Gearbox | 6-speed |
Transmission type | Chain (final drive) |
Clutch | Multi-plate in oil bath, hydraulically operated. |
Driveline | Primary drive: Spur gears, transmission ratio: 60/31 (1.75) Final drive: Chain Transmission ratio: 16/44 |
Exhaust system | 2 into 1 exhaust system in 100% stainless steel with three-way catalytic converter and lambda probe |
Chassis, suspension, brakes and wheels |
---|
Frame type | Modular tubular steel frame fastened to aluminium side plates by high strength bolts. Removable rear subframe. |
Rake (fork angle) | 25.7° |
Trail | 109 mm (4.3 inches) |
Front suspension | 43 mm upside-down fork. |
Front wheel travel | 120 mm (4.7 inches) |
Rear suspension | Aluminium alloy swingarm with reinforcement truss. Hydraulic shock absorber adjustable in spring preload and rebound damping. |
Rear wheel travel | 130 mm (5.1 inches) |
Front tire | 120/70-17 |
Rear tire | 180/55-17 |
Front brakes | Double disc. Stainless steel floating discs. Four piston radial calipers. Metal braided brake line |
Diameter | 320 mm (12.6 inches) |
Rear brakes | Single disc. Single piston caliper |
Diameter | 240 mm (9.4 inches) |
Physical measures and capacities |
---|
Seat height | 810 mm (31.9 inches) If adjustable, lowest setting. |
Overall height | 1135 mm (44.7 inches) |
Overall length | 2265 mm (89.2 inches) |
Overall width | 800 mm (31.5 inches) |
Wheelbase | 1440 mm (56.7 inches) |
Fuel capacity | 15.00 litres (3.96 US gallons) |
Other specifications |
---|
Color options | Silver, black, white |
Starter | Electric |
