| Aprilia's profilation of this bike |
| At last, a brand new way of personalising your
Scarabeo. You can choose between six different
shields to keep pace with the latest trends. |
|
General moped information |
|
Model
|

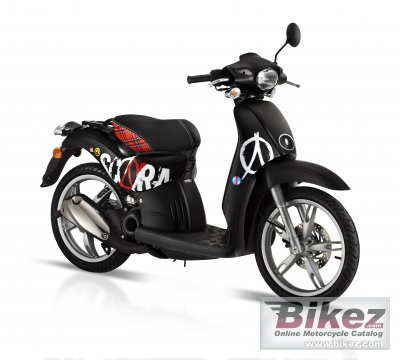

Aprilia Scarabeo 50 Special Edition |
|
Year
|
2011 |
|
Category
|
Scooter |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
|
Engine and transmission |
|
Displacement
|
49.4 ccm (3.01 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Compression
|
10.5:1 |
|
Bore x stroke
|
41.0 x 37.4 mm (1.6 x 1.5 inches) |
|
Fuel system
|
Carburettor. Dell’Orto |
|
Fuel control
|
Overhead Cams (OHC) |
|
Ignition
|
Electronic capacitive discharge with variable advance |
|
Lubrication system
|
Separate oil petrol pump mixer |
|
Cooling system
|
Air |
|
Gearbox
|
Automatic |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
Automatic dry centifuge with damper buffers |
|
Emission details
|
Euro 2 |
|
Exhaust system
|
Catalytic converter |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Mono cradle tubular steel high yield point |
|
Front suspension
|
Telescopic hydraulic fork |
|
Front wheel travel
|
80 mm (3.1 inches) |
|
Rear suspension
|
Single hydraulic shock absorber pivoting on engine-transmission assembly |
|
Rear wheel travel
|
68 mm (2.7 inches) |
|
Front tire
|
80/80-16 |
|
Rear tire
|
90/80-16 |
|
Front brakes
|
Single disc |
|
Diameter
|
220 mm (8.7 inches) |
|
Rear brakes
|
Expanding brake (drum brake) |
|
Diameter
|
140 mm (5.5 inches) |
|
Wheels
|
5-spokelight alloy wheels |
|
Physical measures and capacities |
|
Seat height
|
760 mm (29.9 inches) If adjustable, lowest setting. |
|
Overall height
|
1240 mm (48.8 inches) |
|
Overall length
|
1875 mm (73.8 inches) |
|
Overall width
|
710 mm (28.0 inches) |
|
Wheelbase
|
1245 mm (49.0 inches) |
|
Fuel capacity
|
7.50 litres (1.98 US gallons) |
|
Reserve fuel capacity
|
2.00 litres (0.53 US gallons) |
|
Other specifications |
|
Starter
|
Electric & kick |
|
Electrical
|
12 V – 88 W generator |
