| General information |
|---|

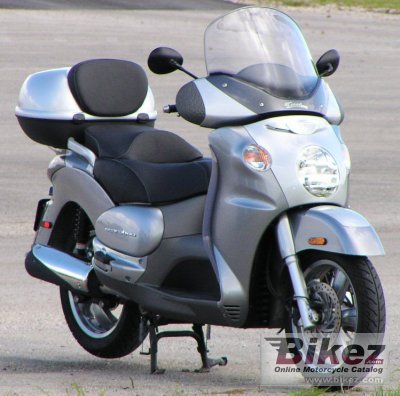

| Model | Aprilia Scarabeo 500 |
| Year | 2004 |
| Category | Scooter |
| Rating | 3.5 View the detailed rating of value for money, design and look, reliability, etc. Compare with any other bike. |
| Engine and transmission |
|---|
| Displacement | 460.0 ccm (28.07 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Compression | 10.5:1 |
| Bore x stroke | 92.0 x 69.0 mm (3.6 x 2.7 inches) |
| Valves per cylinder | 4 |
| Fuel system | Carburettor. Keihin |
| Fuel control | Single Overhead Cams (SOHC) |
| Ignition | Electronic |
| Lubrication system | Wet sump. Forced circulation with mechanical pump |
| Cooling system | Liquid |
| Gearbox | Automatic |
| Transmission type | Belt (final drive) |
| Clutch | Automatic centrifugal |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type | High-tensile double-cradle tubular lattice with high flexional and torsional rigidity |
| Front suspension | Hydraulic fork, sleeve diameter 40 mm. |
| Front wheel travel | 100 mm (3.9 inches) |
| Rear suspension | Engine functions as swinging fork swingarm, linked to the frame by dual connecting rods and two radial silent blocks. Two double-action gas shock absorbers with preload adjustment. |
| Rear wheel travel | 110 mm (4.3 inches) |
| Front tire | 110/80-16 |
| Rear tire | 140/70-17 |
| Front brakes | Double disc |
| Diameter | 260 mm (10.2 inches) |
| Rear brakes | Single disc |
| Diameter | 220 mm (8.7 inches) |
| Physical measures and capacities |
|---|
| Overall height | 1450 mm (57.1 inches) |
| Overall length | 2310 mm (90.9 inches) |
| Overall width | 783 mm (30.8 inches) |
| Wheelbase | 1605 mm (63.2 inches) |
| Fuel capacity | 17.00 litres (4.49 US gallons) |
| Other specifications |
|---|
| Starter | Electric |
