| Aprilia's profilation of this bike |
| Essential, decisive lines convey a sensation of lightness and build quality. The RXV’s designers have been eager to incorporate the features that distinguish all Aprilias, and have launched a whole new type of off-road motorcycle. You simply can’t fail to appreciate technology like the V twin engine, mixed steel trellis frame and sculpted swingarm. |
|
General information |
|
Model
|

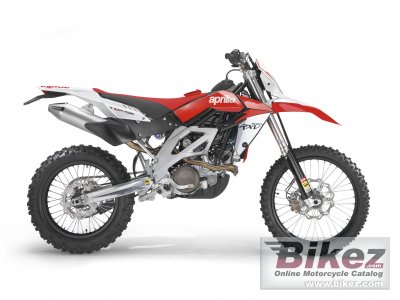

Aprilia RXV 5.5 |
|
Model year
|
2013 |
|
Category
|
Super motard |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
|
Engine and transmission |
|
Displacement
|
550.0 ccm (33.56 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Engine details
|
77° V twin. Titanium valves. |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection. Integrated electronic engine management system controlling ignition and fuel injection, with two power mappings. Throttle body: 40 mm. |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Ignition
|
Electronic. |
|
Lubrication system
|
Dry sump with external oil tank. Separate gearbox lubrication. |
|
Cooling system
|
Liquid |
|
Gearbox
|
5-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Cable operated multi-plate wet clutch. |
|
Emission details
|
Euro 3 lateral exhaust. Conforms to FIM regulations for 2009. |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Chrome-molybdenum steel perimeter frame with aluminium alloy vertical members. Lightweight rear frame. |
|
Rake (fork angle)
|
27.0° |
|
Front suspension
|
48 mm upside down fork with two adjustments. |
|
Rear suspension
|
Aluminium swingarm with cast body and hydroformed members. Hydraulic monoshock with compression and rebound adjustment. |
|
Front tire
|
90/90-21 |
|
Rear tire
|
140/80-18 |
|
Front brakes
|
Single disc. Floating disc in stainless steel with aluminium flange. Nissin floating caliper. |
|
Diameter
|
270 mm (10.6 inches) |
|
Rear brakes
|
Single disc. Stainless steel disc with floating caliper |
|
Diameter
|
240 mm (9.4 inches) |
|
Wheels
|
Black anodised aluminium alloy. |
|
Physical measures and capacities |
|
Seat height
|
918 mm (36.1 inches) If adjustable, lowest setting. |
|
Overall length
|
2220 mm (87.4 inches) |
|
Overall width
|
800 mm (31.5 inches) |
|
Ground clearance
|
396 mm (15.6 inches) |
|
Wheelbase
|
1495 mm (58.9 inches) |
|
Fuel capacity
|
7.80 litres (2.06 US gallons) |
|
Other specifications |
|
Color options
|
Off white |
|
Starter
|
Electric |
|
Instruments
|
Digital instruments |
