| General moped information |
|---|

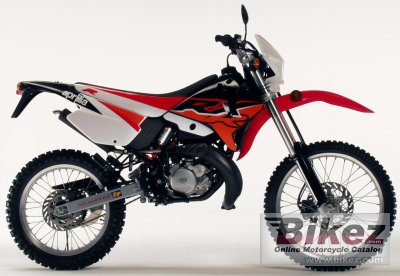

| Model | Aprilia RX 50 Racing |
| Year | 2005 |
| Category | Enduro / offroad |
| Rating | 3.7 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission |
|---|
| Displacement | 49.7 ccm (3.03 cubic inches) |
| Engine type | Single cylinder, two-stroke |
| Power | 8.0 HP (5.8 kW)) @ 10000 RPM |
| Top speed | 70.0 km/h (43.5 mph) |
| Bore x stroke | 40.3 x 39.0 mm (1.6 x 1.5 inches) |
| Fuel system | Carburettor. Dell´Orto SHA 14/12 with mixture heating system in manifold |
| Ignition | Electronic, capacitor discharge |
| Lubrication system | Separate mixing with variable displacement pump |
| Cooling system | Liquid |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Clutch | Multiple disk in oil bath |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type | Closed cradle split at exhaust level, in high strength steel tubes |
| Front suspension | Upside down telescopic fork, Ø 35 mm inners. |
| Front wheel travel | 250 mm (9.8 inches) |
| Rear suspension | Swing-arm in box section , with anti-friction bushings, adjustable monoshock with Aprilia Progressive System action |
| Rear wheel travel | 260 mm (10.2 inches) |
| Front tire | 90/90-21 |
| Rear tire | 110/80-18 |
| Front brakes | Single disc |
| Diameter | 230 mm (9.1 inches) |
| Rear brakes | Single disc |
| Diameter | 220 mm (8.7 inches) |
| Physical measures and capacities |
|---|
| Dry weight | 98.0 kg (216.1 pounds) |
| Weight incl. oil, gas, etc | 107.0 kg (235.9 pounds) |
| Power/weight ratio | 0.0816 HP/kg |
| Seat height | 940 mm (37.0 inches) If adjustable, lowest setting. |
| Overall length | 2060 mm (81.1 inches) |
| Wheelbase | 1400 mm (55.1 inches) |
| Fuel capacity | 9.50 litres (2.51 US gallons) |
| Other specifications |
|---|
| Color options | Aprilia black/lemon yellow, baltic blue/sky blue, matt black/hot red |
| Starter | Kick |
