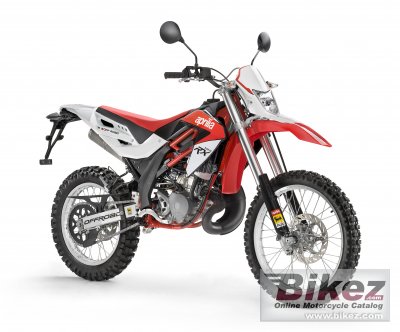

Aprilia RX 125 20132013 Aprilia RX 125 specifications, pictures, reviews and rating |
| Aprilia's profilation of this bike |
| With its 17” wheels and sports tyres, the SX is the obvious candidate for the prize of the meanest 125 over mixed routes. Nippy and lightweight, the SX delivers real ‘big bike’ performance without exceeding the power restrictions imposed by law. Its refined, sprightly engine never lets you down. |
| General information | |
|---|---|
| Model name | Aprilia RX 125 |
| Year model | 2013 |
| Type | Enduro / offroad |
| Rating |
Do you know this bike? Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission | |
| Engine size | 124.8 ccm (7.62 cubic inches) |
| Type of engine | Single cylinder, two-stroke |
| Engine details | Rotax 122: Aluminium cylinder with Nikasil coated liner. Reed valve intake. |
| Effect | 22.4 HP (16.4 kW)) @ 10000 RPM |
| Torque | 16.0 Nm (1.6 kgf-m or 11.8 ft.lbs) @ 9750 RPM |
| Top speed | 120.0 km/h (74.6 mph) |
| Compression | 12.5:1 |
| Bore x stroke | 54.0 x 54.5 mm (2.1 x 2.1 inches) |
| Fuel system | Carburettor. Dell’Orto VHST 28 |
| Fuel control | Membrane & power valve |
| Ignition | ECU AC34 cm082405 |
| Lubrication system | Separate mixing with variable displacement, volumetric pump. |
| Cooling system | Liquid |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Clutch | Multi-plate wet clutch. |
| Driveline | Primary drive: Gearbox: 63/19 (3.32). Final drive: Chain: 15/49 (3.27) |
| Emission details | Euro 3, two catalytic converters, secondary air system. |
| Exhaust system | ZD41044 e11 e3 |
| Chassis, suspension, brakes and wheels | |
| Frame type | High strength steel frame with double trellis beam and double cradle. Detachable seat frame. |
| Rake (fork angle) | 28.0° |
| Trail | 113 mm (4.4 inches) |
| Front suspension | 40 mm upside down hydraulic fork. |
| Front wheel travel | 260 mm (10.2 inches) |
| Rear suspension | Steel swingarm. Hydraulic monoshock with piggy back cylinder. |
| Rear wheel travel | 265 mm (10.4 inches) |
| Front tire | 90/90-21 |
| Rear tire | 120/90-18 |
| Front brakes | Single disc. Floating caliper with two parallel pistons |
| Diameter | 260 mm (10.2 inches) |
| Rear brakes | Single disc. Floating caliper with single piston |
| Diameter | 220 mm (8.7 inches) |
| Wheels | Front wheel Aluminium, 1.6x21”. Rear wheel Aluminium, 2.15x18”. |
| Physical measures and capacities | |
| Dry weight | 118.0 kg (260.1 pounds) |
| Weight incl. oil, gas, etc | 125.0 kg (275.6 pounds) |
| Power/weight ratio | 0.1898 HP/kg |
| Seat height | 925 mm (36.4 inches) If adjustable, lowest setting. |
| Overall height | 1200 mm (47.2 inches) |
| Overall length | 2243 mm (88.3 inches) |
| Overall width | 840 mm (33.1 inches) |
| Ground clearance | 300 mm (11.8 inches) |
| Wheelbase | 1490 mm (58.7 inches) |
| Fuel capacity | 10.00 litres (2.64 US gallons) |
| Reserve fuel capacity | 3.00 litres (0.79 US gallons) |
| Oil capacity | 0.60 litres (0.63 US quarts) |
| Other specifications | |
| Color options | Off white |
| Starter | Kick |
| Comments | Type SXA00. |
