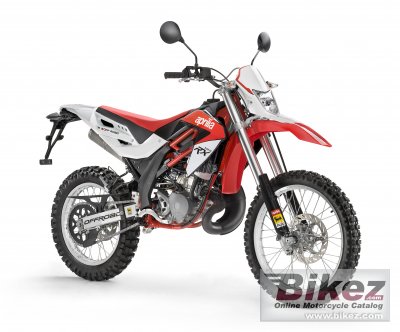

Aprilia RX 125 20112011 Aprilia RX 125 specifications, pictures, reviews and rating |
| Aprilia's profilation of this bike |
| As with all off road motorcycles worthy of respect, the RX is built for maximum functionality and efficient riding and control. It´s styling leaves no room for pointless frills and gadgets. |
| General information | |
|---|---|
| Model | Aprilia RX 125 |
| Model year | 2011 |
| Category | Enduro / offroad |
| Rating | 3.0 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 124.8 ccm (7.62 cubic inches) |
| Engine type | Single cylinder, two-stroke |
| Engine details | Rotax 122: Aluminium cylinder with Nikasil coated liner. Reed valve intake. |
| Power output | 22.4 HP (16.4 kW)) @ 10000 RPM |
| Torque | 16.0 Nm (1.6 kgf-m or 11.8 ft.lbs) @ 9750 RPM |
| Top speed | 120.0 km/h (74.6 mph) |
| Compression | 12.5:1 |
| Bore x stroke | 54.0 x 54.5 mm (2.1 x 2.1 inches) |
| Fuel system | Carburettor. Dell’Orto VHST 28 |
| Fuel control | Membrane & power valve |
| Ignition | ECU AC34 cm082405 |
| Lubrication system | Separate mixing with variable displacement, volumetric pump. |
| Cooling system | Liquid |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Clutch | Multi-plate wet clutch. |
| Driveline | Primary drive: Gearbox: 63/19 (3.32). Final drive: Chain: 15/49 (3.27) |
| Emission details | Euro 3, two catalytic converters, secondary air system. |
| Exhaust system | ZD41044 e11 e3 |
| Chassis, suspension, brakes and wheels | |
| Frame type | High strength steel frame with double trellis beam and double cradle. Detachable seat frame. |
| Rake (fork angle) | 28.0° |
| Trail | 113 mm (4.4 inches) |
| Front suspension | 40 mm upside down hydraulic fork |
| Front wheel travel | 260 mm (10.2 inches) |
| Rear suspension | Steel swingarm. Hydraulic monoshock with piggy back cylinder. |
| Rear wheel travel | 265 mm (10.4 inches) |
| Front tire | 90/90-21 |
| Rear tire | 120/90-18 |
| Front brakes | Single disc. Floating caliper with two parallel pistons |
| Diameter | 260 mm (10.2 inches) |
| Rear brakes | Single disc. Floating caliper with single piston |
| Diameter | 220 mm (8.7 inches) |
| Wheels | Front wheel Aluminium, 1.6x21”. Rear wheel Aluminium, 2.15x18”. |
| Physical measures and capacities | |
| Dry weight | 118.0 kg (260.1 pounds) |
| Weight incl. oil, gas, etc | 125.0 kg (275.6 pounds) |
| Power/weight ratio | 0.1898 HP/kg |
| Seat height | 925 mm (36.4 inches) If adjustable, lowest setting. |
| Overall height | 1200 mm (47.2 inches) |
| Overall length | 2243 mm (88.3 inches) |
| Overall width | 840 mm (33.1 inches) |
| Ground clearance | 300 mm (11.8 inches) |
| Wheelbase | 1490 mm (58.7 inches) |
| Fuel capacity | 10.00 litres (2.64 US gallons) |
| Reserve fuel capacity | 3.00 litres (0.79 US gallons) |
| Oil capacity | 0.60 litres (0.63 US quarts) |
| Other specifications | |
| Color options | Off white |
| Starter | Kick |
| Comments | Type SXA00. |
