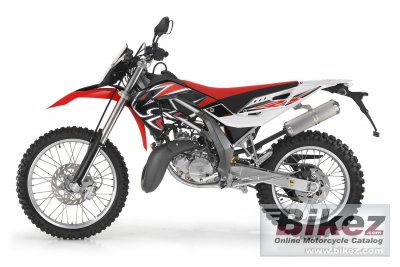

Aprilia RX 125 20092009 Aprilia RX 125 specifications, pictures, reviews and rating |
| Aprilia's profilation of this bike |
| As with all off road motorcycles worthy of respect, the SX and RX are built for maximum functionality and efficient riding and control. Their styling leaves no room for pointless frills and gadgets |
| General information | |
|---|---|
| Motorcycle name | Aprilia RX 125 |
| Year model | 2009 |
| Type | Enduro / offroad |
| Rating | 3.7 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 124.8 ccm (7.62 cubic inches) |
| Type of engine | Single cylinder, two-stroke |
| Engine details | Rotax 122: Aluminium cylinder with Nikasil coated liner. Reed valve intake. |
| Effect | 22.4 HP (16.4 kW)) @ 10000 RPM |
| Torque | 16.0 Nm (1.6 kgf-m or 11.8 ft.lbs) @ 9750 RPM |
| Top speed | 120.0 km/h (74.6 mph) |
| Compression | 12.5:1 |
| Bore x stroke | 54.0 x 54.5 mm (2.1 x 2.1 inches) |
| Fuel system | Carburettor. DellOrto VHST 28 CD |
| Fuel control | Membrane & power valve |
| Ignition | ECU AC34 cm082405 |
| Lubrication system | Separate mixing with variable displacement, volumetric pump. |
| Cooling system | Liquid |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Clutch | Multi-plate wet clutch. |
| Driveline | Primary drive: Gearbox: 63/19 (3.32). Final drive: Chain: 15/49 (3.27) |
| Emission details | Euro 3, two catalytic converters, secondary air system. |
| Exhaust system | ZD41044 e11 e3 |
| Chassis, suspension, brakes and wheels | |
| Frame type | High strength steel frame with double trellis beam and double cradle. Detachable seat frame. |
| Rake (fork angle) | 28.0° |
| Trail | 113 mm (4.4 inches) |
| Front suspension | 40 mm upside down hydraulic fork. |
| Front wheel travel | 260 mm (10.2 inches) |
| Rear suspension | Steel swingarm. Hydraulic monoshock with piggy back cylinder. |
| Rear wheel travel | 265 mm (10.4 inches) |
| Front tire | 90/90-21 |
| Rear tire | 120/90-18 |
| Front brakes | Single disc. Floating caliper with two parallel pistons |
| Diameter | 260 mm (10.2 inches) |
| Rear brakes | Single disc. Floating caliper with single piston |
| Diameter | 220 mm (8.7 inches) |
| Wheels | Aluminium spoke rims; 1.60x21 / 2.15x18 |
| Physical measures and capacities | |
| Dry weight | 118.0 kg (260.1 pounds) |
| Weight incl. oil, gas, etc | 125.0 kg (275.6 pounds) |
| Power/weight ratio | 0.1898 HP/kg |
| Seat height | 925 mm (36.4 inches) If adjustable, lowest setting. |
| Overall height | 1200 mm (47.2 inches) |
| Overall length | 2243 mm (88.3 inches) |
| Overall width | 840 mm (33.1 inches) |
| Ground clearance | 300 mm (11.8 inches) |
| Wheelbase | 1490 mm (58.7 inches) |
| Fuel capacity | 10.00 litres (2.64 US gallons) |
| Reserve fuel capacity | 3.00 litres (0.79 US gallons) |
| Oil capacity | 0.60 litres (0.63 US quarts) |
| Other specifications | |
| Color options | Off White |
| Starter | Kick |
| Comments | Type SXA00. |
