| General information |
|---|

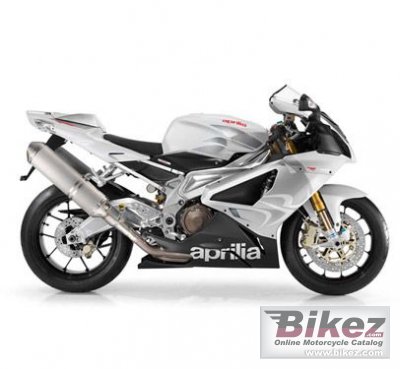

| Model | Aprilia RSV 1000 R |
| Year | 2009 |
| Category | Sport |
| Rating | 3.8 Check out the detailed rating of racing track capabilities, engine performance, accident risk, etc. Compare with any other bike. |
| Engine and transmission |
|---|
| Displacement | 983.3 ccm (60.00 cubic inches) |
| Engine type | V2, four-stroke |
| Power | 141.1 HP (103.0 kW)) @ 10000 RPM |
| Torque | 101.0 Nm (10.3 kgf-m or 74.5 ft.lbs) @ 8000 RPM |
| Compression | 11.8:1 |
| Bore x stroke | 97.0 x 67.5 mm (3.8 x 2.7 inches) |
| Valves per cylinder | 4 |
| Fuel system | Injection. Integrated electronic engine management system. Indirect multipoint electronic injection. 57 mm throttle bodies. 10.3 litre airbox with Air Runner air scoop. |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Ignition | Digital electronic ignition, with one spark plug per cylinder, integrated with fuel injection system. |
| Lubrication system | Dry sump with separate oil tank. Double trochoid pump with oil cooler. Steel oil tank. |
| Cooling system | Oil & air |
| Transmission type | Chain (final drive) |
| Clutch | Multi-plate clutch in oil bath with patented PPC power-assisted hydraulic control. Metal braided clutch line. Radial master cylinders with 15 mm piston. |
| Exhaust system | Double silencer with three way catalytic converter and lambda probe oxygen sensor (Euro 3). |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type | Box section sloping twin-spar frame in aluminium alloy. |
| Trail | 102 mm (4.0 inches) |
| Front suspension | 43 mm Ohlins titanium nitride (TiN) coated upside-down fork. Adjustable in compression, rebound and preload. 120 mm wheel travel. Shortened fork bottoms with radial caliper fittings. |
| Rear suspension | Aluminium alloy double arched member swingarm. Aprilia Progressive System (APS) linkages. Sachs monoshock with adjustable compression, rebound, preload and length. 133 mm wheel travel. |
| Front tire | 120/70-17. |
| Rear tire | 190/50-17 |
| Front brakes | Double disc |
| Diameter | 320 mm (12.6 inches) |
| Rear brakes | Single disc |
| Diameter | 220 mm (8.7 inches) |
| Physical measures and capacities |
|---|
| Dry weight | 189.0 kg (416.7 pounds) |
| Power/weight ratio | 0.7467 HP/kg |
| Seat height | 810 mm (31.9 inches) If adjustable, lowest setting. |
| Overall height | 1130 mm (44.5 inches) |
| Overall length | 2035 mm (80.1 inches) |
| Overall width | 730 mm (28.7 inches) |
| Wheelbase | 1418 mm (55.8 inches) |
| Fuel capacity | 18.00 litres (4.76 US gallons) |
| Other specifications |
|---|
| Color options | Black, blue |
| Starter | Electric |
