| General information |
|---|

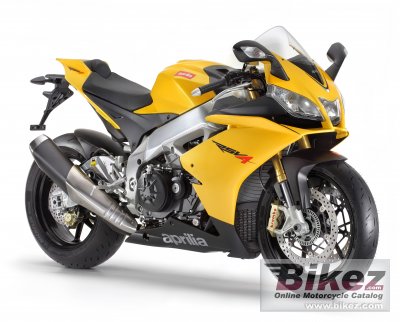

| Model: | Aprilia RSV4 R APRC |
| Year: | 2012 |
| Category: | Sport |
| Rating: | 74.7 out of 100. Show full rating and compare with other bikes |
| Engine and transmission |
|---|
| Displacement: | 999.60 ccm (61.00 cubic inches) |
| Engine type: | V4, four-stroke |
| Engine details: | Longitudinal 65° V-4 cylinder |
| Power: | 180.00 HP (131.4 kW)) @ 12500 RPM |
| Torque: | 115.00 Nm (11.7 kgf-m or 84.8 ft.lbs) @ 10000 RPM |
| Compression: | 13.0:1 |
| Bore x stroke: | 78.0 x 52.3 mm (3.1 x 2.1 inches) |
| Valves per cylinder: | 4 |
| Fuel system: | Injection. Airbox with front dynamic air intakes. 4 Weber-Marelli 48-mm throttle bodies with 8 injectors and latest generation Ride-by-Wire engine management. Choice of three different engine maps selectable by the rider with bike in motion: T (Track), S (Sport), |
| Fuel control: | Double Overhead Cams/Twin Cam (DOHC) |
| Ignition: | Magneti Marelli digital electronic ignition system integrated in engine control system, with one spark plug per cylinder and “stick-coilâ€-type coils |
| Lubrication system: | Wet sump lubrication system with oil radiator and two oil pumps (lubrication and cooling) |
| Cooling system: | Liquid |
| Gearbox: | 6-speed |
Transmission type,
final drive: | Chain |
| Clutch: | Multiplate wet clutch with mechanical slipper system |
| Driveline: | Primary drive: Straight cut gears and integrated flexible coupling, drive ratio: 73/44 (1,659). Final drive: Chain: Drive ratio: 40/16 (2.5) or 42/16 (2.625) |
| Exhaust system: | 4 into 2 into 1 layout, single oxygen sensor, lateral single silencer with engine control unit-controlled butterfly valve and integrated trivalent catalytic converter (Euro 3) |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Aluminium dual beam chassis with pressed and cast sheet elements. Sachs steering damper |
| Rake (fork angle): | 24.5° |
| Trail: | 105 mm (4.1 inches) |
| Front suspension: | Upside-down Showa fork with Ø 43 mm stanchions. Forged aluminium radial calliper mounting brackets. Completely adjustable spring preload and hydraulic compression and rebound damping. Wheel travel: 120 mm |
| Front wheel travel: | 120 mm (4.7 inches) |
| Rear suspension: | Twin sided aluminium swingarm; mixed low thickness and sheet casting technology. Sachs piggy back monoshock with completely adjustable: spring preload, wheelbase, hydraulic compression and rebound damping. APS progressive linkage. |
| Rear wheel travel: | 130 mm (5.1 inches) |
| Front tyre: | 120/70-17 |
| Rear tyre: | 190/55-17 |
| Front brakes: | Double disc |
| Front brakes diameter: | 320 mm (12.6 inches) |
| Rear brakes: | Single disc |
| Rear brakes diameter: | 220 mm (8.7 inches) |
| Wheels: | Front: Aluminium alloy with 6 split spokes, 3.5”X17” Rear: Aluminium alloy with 5 split spokes, 6”X17” |
| Physical measures and capacities |
|---|
| Dry weight: | 184.0 kg (405.7 pounds) |
| Power/weight ratio: | 0.9783 HP/kg |
| Seat height: | 845 mm (33.3 inches) If adjustable, lowest setting. |
| Fuel capacity: | 17.00 litres (4.49 gallons) |
| Reserve fuel capacity: | 4.00 litres (1.06 gallons) |
| Other specifications |
|---|
| Color options: | Black, White |
| Starter: | Electric |
| Electrical: | Flywheel mounted 420W alternator with rare earth magnets |
