Aprilia's profilation of this bike |
Reaching the most incredible finishing lines with regards to emotions and performances, lap after lap.
Feeling the adrenaline of speeding going through the veins, each time you are on the saddle. Being first in technology. |
General information |
Model name
|

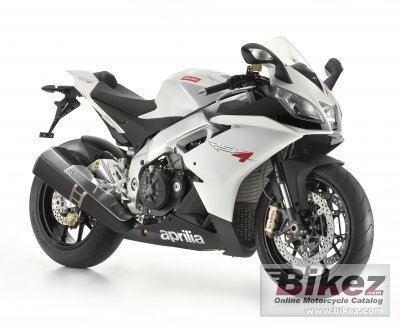

Aprilia RSV4 R |
Year
|
2010 |
Category
|
Sport |
Rating
|
3.1 Check out the detailed rating of racing track capabilities, engine performance, accident risk, etc. Compare with any other bike. |
Engine and transmission |
Displacement
|
999.6 ccm (61.00 cubic inches) |
Engine type
|
V4, four-stroke |
Power
|
180.0 HP (131.4 kW)) @ 12500 RPM |
Torque
|
115.0 Nm (11.7 kgf-m or 84.8 ft.lbs) @ 10000 RPM |
Compression
|
13.0:1 |
Bore x stroke
|
78.0 x 52.3 mm (3.1 x 2.1 inches) |
Valves per cylinder
|
4 |
Fuel system
|
Injection. Airbox with front dynamic air intakes. 4 Weber-Marelli 48-mm throttle bodies with 8 injectors and latest generation Ride-by-Wire engine management. Choice of three different engine maps selectable by the rider with bike in motion: T (Track), S (Sport), |
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
Ignition
|
Magneti Marelli digital electronic ignition system integrated in engine control system, with one spark plug per cylinder and “stick-coilâ€-type coils |
Lubrication system
|
Wet sump lubrication system with oil radiator and two oil pumps (lubrication and cooling) |
Cooling system
|
Liquid |
Gearbox
|
6-speed |
Transmission type
|
Chain (final drive) |
Clutch
|
Multiplate wet clutch with mechanical slipper system |
Exhaust system
|
4 into 2 into 1 layout, single oxygen sensor, lateral single silencer with engine control unit-controlled butterfly valve and integrated trivalent catalytic converter (Euro 3) |
Chassis, suspension, brakes and wheels |
Rake (fork angle)
|
24.5° |
Trail
|
105 mm (4.1 inches) |
Front suspension
|
Upside-down Showa fork with 43 mm stanchions. Forged aluminium radial calliper mounting brackets. Completely adjustable spring preload and hydraulic compression and rebound damping. |
Front wheel travel
|
120 mm (4.7 inches) |
Rear suspension
|
Twin sided aluminium swingarm |
Rear wheel travel
|
130 mm (5.1 inches) |
Front tire
|
120/70-17 |
Rear tire
|
190/55-17 |
Front brakes
|
Double disc |
Diameter
|
320 mm (12.6 inches) |
Rear brakes
|
Single disc |
Diameter
|
220 mm (8.7 inches) |
Physical measures and capacities |
Dry weight
|
184.0 kg (405.7 pounds) |
Power/weight ratio
|
0.9783 HP/kg |
Seat height
|
845 mm (33.3 inches) If adjustable, lowest setting. |
Overall height
|
1120 mm (44.1 inches) |
Overall length
|
2040 mm (80.3 inches) |
Overall width
|
735 mm (28.9 inches) |
Ground clearance
|
130 mm (5.1 inches) |
Fuel capacity
|
17.00 litres (4.49 US gallons) |
Other specifications |
Color options
|
Black, white |
Starter
|
Electric |
