General information |
|
Motorcycle name
|

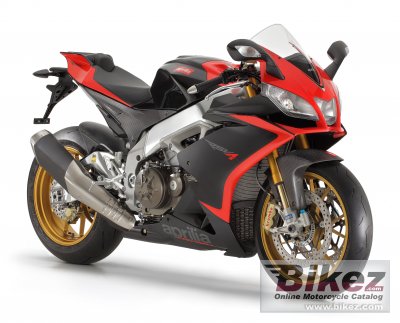

Aprilia RSV4 Factory APRC |
|
Year
|
2012 |
|
Category
|
Sport |
|
Rating
|
3.3 Check out the detailed rating of racing track capabilities, engine performance, accident risk, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
999.6 ccm (61.00 cubic inches) |
|
Engine type
|
V4, four-stroke |
|
Engine details
|
Longitudinal 65° V-4 cylinder |
|
Power
|
180.0 HP (131.4 kW)) @ 12500 RPM |
|
Torque
|
115.0 Nm (11.7 kgf-m or 84.8 ft.lbs) @ 10000 RPM |
|
Compression
|
13.0:1 |
|
Bore x stroke
|
78.0 x 52.3 mm (3.1 x 2.1 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection. Airbox with front dynamic air intakes. Variable length intake ducts controlled via ECU. 4 Weber-Marelli 48-mm throttle bodies with 8 injectors and latest generation Ride-by-Wire engine management. Choice of three different engine maps selectable by the ri |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Ignition
|
Magneti Marelli digital electronic ignition system integrated in engine control system, with one spark plug per cylinder and “stick-coilâ€-type coils |
|
Lubrication system
|
Wet sump lubrication system with oil radiator and two oil pumps (lubrication and cooling) |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Multi-disc oil-bath, with mechanical slipper system |
|
Driveline
|
Primary: Straight cut gears and integrated flexible coupling, drive ratio: 73/44 (1,659) . Final: Chain: Drive ratio: 40/16 (2,5) . |
|
Exhaust system
|
System 4 into 2 into 1 layout, single oxygen sensor, lateral single silencer with engine control unit-controlled butterfly valve and integrated trivalent catalytic converter (Euro 3) |
|
Chassis, suspension, brakes and wheels |
|
Rake (fork angle)
|
24.5° |
|
Trail
|
105 mm (4.1 inches) |
|
Front suspension
|
Ohlins Racing upside-down fork, 43-mm stanchions (with Tin surface treatment). Low profile forged aluminium radial caliper mountings. Completely adjustable spring preload and hydraulic compression and rebound damping. Wheel travel: 120 mm |
|
Front wheel travel
|
120 mm (4.7 inches) |
|
Rear suspension
|
Twin sided aluminium swingarm |
|
Rear wheel travel
|
130 mm (5.1 inches) |
|
Front tire
|
120/70-ZR17 |
|
Rear tire
|
200/55-ZR17 |
|
Front brakes
|
Double disc |
|
Diameter
|
320 mm (12.6 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
220 mm (8.7 inches) |
|
Wheels
|
Forged aluminium alloy rims, completely machined, 5 split spokes. Front:3.5”X17” Rear: 6”X17” |
|
Physical measures and capacities |
|
Dry weight
|
179.0 kg (394.6 pounds) |
|
Power/weight ratio
|
1.0056 HP/kg |
|
Seat height
|
845 mm (33.3 inches) If adjustable, lowest setting. |
|
Overall height
|
1120 mm (44.1 inches) |
|
Overall length
|
2040 mm (80.3 inches) |
|
Overall width
|
735 mm (28.9 inches) |
|
Ground clearance
|
130 mm (5.1 inches) |
|
Fuel capacity
|
17.00 litres (4.49 US gallons) |
|
Other specifications |
|
Color options
|
Racing Black |
|
Starter
|
Electric |
|
Instruments
|
Dual display mode for instrument panel display: ROAD and RACE. |
|
Electrical
|
Flywheel mounted 420W alternator with rare earth magnets. |
|
Comments
|
APRC means ´Aprilia Performance Ride Control´. Aprilia Traction Control automatically adjusts to different types of tyres, with 8 settings conveniently selectable while racing from a joystick on the left handlebar without turning down the throttle. Optimised gear ratios for track performance. |
