| General information |
|---|

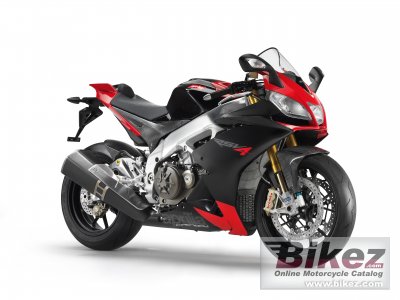

| Model: | Aprilia RSV4 Factory |
| Year: | 2010 |
| Category: | Sport |
| Rating: | 3.5 Check out the detailed rating of racing track capabilities, engine performance, accident risk, etc. Compare with any other bike. |
| Engine and transmission |
|---|
| Displacement: | 999.6 ccm (61.00 cubic inches) |
| Engine type: | V4, four-stroke |
| Power: | 177.6 HP (129.6 kW)) @ 12500 RPM |
| Torque: | 115.0 Nm (11.7 kgf-m or 84.8 ft.lbs) @ 10000 RPM |
| Compression: | 13.0:1 |
| Bore x stroke: | 78.0 x 52.3 mm (3.1 x 2.1 inches) |
| Valves per cylinder: | 4 |
| Fuel system: | Injection. Airbox with front dynamic air intakes. Variable length intake ducts controlled via ECU. 4 Weber-Marelli 48-mm throttle bodies with 8 injectors and latest generation Ride-by-Wire engine management. Choice of three different engine maps selectable by the ri |
| Fuel control: | Double Overhead Cams/Twin Cam (DOHC) |
| Ignition: | Magneti Marelli digital electronic ignition system integrated in engine control system, with one spark plug per cylinder and “stick-coilâ€-type coils |
| Lubrication system: | Wet sump lubrication system with oil radiator and two oil pumps (lubrication and cooling) |
| Cooling system: | Liquid |
| Gearbox: | 6-speed |
Transmission type,
final drive: | Chain |
| Clutch: | MDouble disk oil-bath, with mechanical slipper system |
| Exhaust system: | System 4 into 2 into 1 layout, single oxygen sensor, lateral single silencer with engine control unit-controlled butterfly valve and integrated trivalent catalytic converter (Euro 3) |
| Chassis, suspension, brakes and wheels |
|---|
| Rake (fork angle): | 24.5° |
| Trail: | 105 mm (4.1 inches) |
| Front suspension: | Öhlins Racing upside-down fork, 43-mm stanchions (with Tin surface treatment). Low profile forged aluminium radial caliper mountings. Completely adjustable spring preload and hydraulic compression and rebound damping. Wheel travel: 120 mm |
| Rear suspension: | Twin sided aluminium swingarm |
| Rear wheel travel: | 3302 mm (130.0 inches) |
| Front tyre: | 120/70-17 |
| Rear tyre: | 190/55-17 |
| Front brakes: | Double disc |
| Diameter: | 320 mm (12.6 inches) |
| Rear brakes: | Single disc |
| Diameter: | 220 mm (8.7 inches) |
| Physical measures and capacities |
|---|
| Dry weight: | 179.0 kg (394.6 pounds) |
| Power/weight ratio: | 0.9919 HP/kg |
| Seat height: | 845 mm (33.3 inches) If adjustable, lowest setting. |
| Fuel capacity: | 17.00 litres (4.49 gallons) |
| Other specifications |
|---|
| Color options: | Racing black |
| Starter: | Electric |
