General information |
|
Model
|

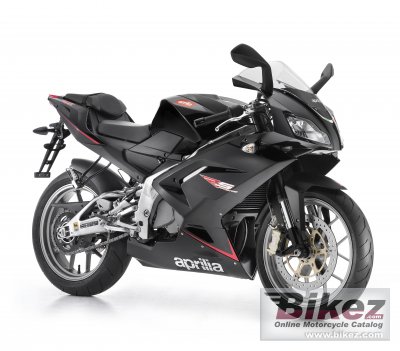

Aprilia RS 125 |
|
Year of manufacture
|
2011 |
|
Type
|
Sport |
|
Rating
|
3.7 Check out the detailed rating of racing track capabilities, engine performance, accident risk, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
124.8 ccm (7.62 cubic inches) |
|
Type of engine
|
Single cylinder, two-stroke |
|
Engine details
|
Rotax 122: Aluminium cylinder with Nikasil coated liner. Reed valve intake. |
|
Output
|
24.1 HP (17.6 kW)) @ 10000 RPM |
|
Torque
|
17.0 Nm (1.7 kgf-m or 12.5 ft.lbs) @ 9750 RPM |
|
Top speed
|
135.0 km/h (83.9 mph) |
|
Compression
|
12.5:1 |
|
Bore x stroke
|
54.0 x 54.5 mm (2.1 x 2.1 inches) |
|
Fuel system
|
Carburettor. DellOrto VHST 28 CD |
|
Ignition
|
ECU AC34 |
|
Lubrication system
|
Separate mixing with variable displacement, volumetric pump. |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Multi-plate in oil bath. |
|
Driveline
|
Primary drive: Gearbox: 63/19 (3.32). Final drive: Chain: 15/40 (2.67) |
|
Emission details
|
Euro 3, two catalytic converters, secondary air system |
|
Exhaust system
|
ZD41043 e11 e3 |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Sloping twin-spar frame in thin wall box section cast aluminium, with reinforcement cross-ribbing. |
|
Front suspension
|
Upside down hydraulic fork, Ø 40 mm. Wheel travel 120 mm. |
|
Rear suspension
|
Swingarm with asymmetric members in thin wall box section cast aluminium. Hydraulic monoshock with adjustable spring preload. Wheel travel 120 mm. |
|
Front tire
|
110/70-R17 |
|
Rear tire
|
150/60-R17 |
|
Front brakes
|
Single disc. Radial caliper, 4 pistons |
|
Diameter
|
320 mm (12.6 inches) |
|
Rear brakes
|
Single disc. 2-piston caliper |
|
Diameter
|
220 mm (8.7 inches) |
|
Wheels
|
Aluminium alloy. Front 3.00 x 17”; rear 4,00 x 17”. |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
137.0 kg (302.0 pounds) |
|
Seat height
|
805 mm (31.7 inches) If adjustable, lowest setting. |
|
Overall height
|
1100 mm (43.3 inches) |
|
Overall length
|
1955 mm (77.0 inches) |
|
Overall width
|
720 mm (28.3 inches) |
|
Ground clearance
|
163 mm (6.4 inches) |
|
Wheelbase
|
1345 mm (53.0 inches) |
|
Fuel capacity
|
14.00 litres (3.70 US gallons) |
|
Reserve fuel capacity
|
3.50 litres (0.92 US gallons) |
|
Oil capacity
|
0.60 litres (0.63 US quarts) |
|
Other specifications |
|
Color options
|
Allitalia red, white, black |
|
Starter
|
Electric |
