General information |
|
Motorcycle name
|

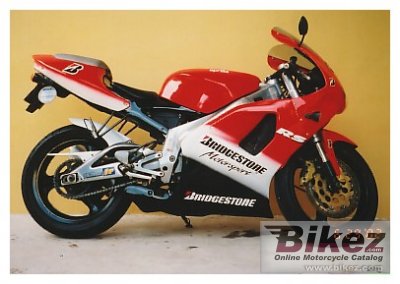

Aprilia RS 125 |
|
Year
|
1997 |
|
Category
|
Sport |
|
Rating
|
3.7 Check out the detailed rating of racing track capabilities, engine performance, accident risk, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
124.8 ccm (7.62 cubic inches) |
|
Engine type
|
Single cylinder, two-stroke |
|
Engine details
|
Rotax 123: Aluminium cylinder with Nikasil coated liner. Reed valve intake. |
|
Power
|
30.8 HP (22.5 kW)) @ 11500 RPM |
|
Torque
|
20.4 Nm (2.1 kgf-m or 15.0 ft.lbs) @ 10800 RPM |
|
Compression
|
12.5:1 |
|
Bore x stroke
|
54.0 x 54.5 mm (2.1 x 2.1 inches) |
|
Fuel system
|
Carburettor. Dell Orto VHSB 34 LD |
|
Fuel control
|
Membrane & power valve |
|
Ignition
|
SEM CDI TM14-04 101 888 00 |
|
Lubrication system
|
Separate mixing with variable displacement, volumetric pump. |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Multi plate in oil bath |
|
Driveline
|
Primary drive: Gearbox: 64/20 (3.2). Final drive: Chain: 16/39 (2.44) |
|
Emission details
|
ECE R40-01 |
|
Exhaust system
|
-GS- e3 C 114.235 |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Sloping twin-spar frame in thin wall box section cast aluminium, with reinforcement cross-ribbing. |
|
Front suspension
|
Upside down hydraulic fork, 40 mm |
|
Front wheel travel
|
120 mm (4.7 inches) |
|
Rear suspension
|
Swingarm with asymmetric members in thin wall box section cast aluminium. Hydraulic monoshock with adjustable spring preload. |
|
Rear wheel travel
|
120 mm (4.7 inches) |
|
Front tire
|
110/70-R17 |
|
Rear tire
|
150/60-R17 |
|
Front brakes
|
Single disc. Axial caliper, 4 pistons |
|
Diameter
|
320 mm (12.6 inches) |
|
Rear brakes
|
Single disc. 2-piston caliper |
|
Diameter
|
220 mm (8.7 inches) |
|
Wheels
|
Aluminium alloy. Front 3.00 x 17, rear 4,00 x 17. |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
144.0 kg (317.5 pounds) |
|
Seat height
|
810 mm (31.9 inches) If adjustable, lowest setting. |
|
Overall height
|
1090 mm (42.9 inches) |
|
Overall length
|
1960 mm (77.2 inches) |
|
Overall width
|
780 mm (30.7 inches) |
|
Ground clearance
|
135 mm (5.3 inches) |
|
Wheelbase
|
1345 mm (53.0 inches) |
|
Fuel capacity
|
13.00 litres (3.43 US gallons) |
|
Reserve fuel capacity
|
3.00 litres (0.79 US gallons) |
|
Oil capacity
|
1.00 litres (1.06 US quarts) |
|
Other specifications |
|
Color options
|
Replica Black, Grey Silver |
|
Starter
|
Electric |
