| Aprilia's profilation of this bike |
  | Comparisons with the SXV 450, the world’s most exciting supermotard, are inevitable. The Pegaso Factory incorporates a host of refinements for even better performance and an even more thrilling ride. |

        | General information |

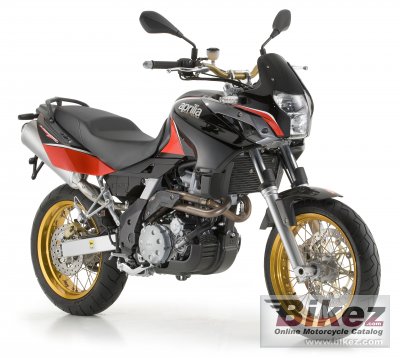

    | Model | Aprilia Pegaso 650 Factory |
    | Year | 2011 |
    | Category | Super motard |
    | Rating | 3.2   Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |

        | Engine and transmission |

    | Displacement | 660.0 ccm (40.27 cubic inches) |
    | Engine type | Single cylinder, four-stroke |
    | Engine details | Anti-vibration balancer shaft. |
    | Power | 48.0 HP (35.0  kW)) @ 6000 RPM |
    | Torque | 59.0 Nm (6.0 kgf-m or 43.5 ft.lbs) |
    | Compression | 10.0:1 |
    | Bore x stroke | 100.0 x 84.0 mm (3.9 x 3.3 inches) |
    | Valves per cylinder | 4 |
    | Fuel system | Injection. Integrated electronic engine management system. Electronic fuel injection.  44 mm throttle body. |
    | Fuel control | Single Overhead Cams (SOHC) |
    | Ignition | Electronic. |
    | Lubrication system | Dry sump with oil pump. |
    | Cooling system | Liquid |
    | Gearbox | 5-speed |
    | Transmission type | Chain  (final drive) |
    | Clutch | Multi-plate in oil bath. Cable operated. |

        | Chassis, suspension, brakes and wheels |

    | Front suspension | 45 mm fork. Wheel travel 140 mm. |
    | Rear suspension | High strength steel swingarm. Aprilia Progressive System (APS) rising rate linkages.  Sachs hydraulic monoshock with adjustable rebound and preload.  Wheel travel 130 mm. |
    | Front tire | 110/70-17 |
    | Rear tire | 160/60-17 |
    | Front brakes | Single disc |
    | Diameter | 320 mm (12.6 inches) |
    | Rear brakes | Single disc |
    | Diameter | 240 mm (9.4 inches) |
    | Wheels | Spoked wheels with gold anodised aluminium rims. Front: 3.50 x 17´. Rear: 4.50 x 17´. |

        | Physical measures and capacities |

    | Seat height | 780 mm (30.7 inches) If adjustable, lowest setting. |
    | Overall length | 2173 mm (85.6 inches) |
    | Overall width | 810 mm (31.9 inches) |
    | Ground clearance | 250 mm (9.8 inches) |
    | Wheelbase | 1479 mm (58.2 inches) |
    | Fuel capacity | 16.00 litres (4.23 US gallons) |
    | Reserve fuel capacity | 3.50 litres (0.92 US gallons) |

        | Other specifications |

    | Color options | Black |
    | Starter | Electric |
