General information |
|
Model
|

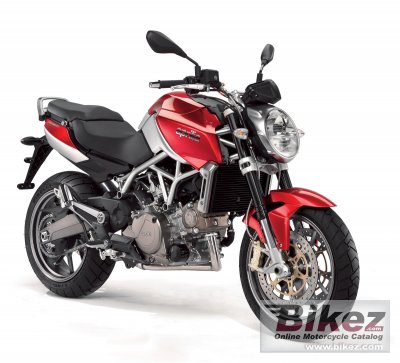

Aprilia NA 850 Mana |
|
Year of manufacture
|
2007 |
|
Type
|
Naked bike |
|
Rating
|
3.8 See the detailed rating of engine performance, design and look, accident risk, etc. Compare with any other motorcycle. |
|
Engine and transmission |
|
Engine size
|
839.3 ccm (51.21 cubic inches) |
|
Type of engine
|
Twin, four-stroke |
|
Output
|
73.9 HP (53.9 kW)) @ 7250 RPM |
|
Torque
|
76.5 Nm (7.8 kgf-m or 56.4 ft.lbs) @ 8000 RPM |
|
Compression
|
10.1:1 |
|
Bore x stroke
|
88.0 x 69.0 mm (3.5 x 2.7 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection. Integrated engine management system. Weber Marelli electronic fuel injection with one 38 mm throttle body |
|
Ignition
|
Digital electronic ignition, with two spark plugs per cylinder, integrated with fuel injection system |
|
Lubrication system
|
Dry sump with separate oil reservoir |
|
Cooling system
|
Liquid |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Automatic |
|
Exhaust system
|
Two in one system in 100% stainless steel with three-way catalytic converter and Lambda probe |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
High strength steel trellis |
|
Rake (fork angle)
|
24.0° |
|
Trail
|
103 mm (4.1 inches) |
|
Front suspension
|
43 mm upside-down fork Wheel |
|
Front wheel travel
|
120 mm (4.7 inches) |
|
Rear suspension
|
Aluminium alloy single-piece swingarm. Hydraulic shock absorber adjustable in spring preload and rebound damping. |
|
Rear wheel travel
|
125 mm (4.9 inches) |
|
Front tire
|
120/70-17 |
|
Rear tire
|
180/55-17 |
|
Front brakes
|
Double disc. Radial calipers with four pistons. |
|
Diameter
|
320 mm (12.6 inches) |
|
Rear brakes
|
Single disc. Single piston caliper. |
|
Diameter
|
240 mm (9.4 inches) |
|
Physical measures and capacities |
|
Seat height
|
800 mm (31.5 inches) If adjustable, lowest setting. |
|
Overall height
|
1130 mm (44.5 inches) |
|
Overall length
|
2080 mm (81.9 inches) |
|
Overall width
|
800 mm (31.5 inches) |
|
Wheelbase
|
1463 mm (57.6 inches) |
|
Fuel capacity
|
15.00 litres (3.96 US gallons) |
|
Other specifications |
|
Starter
|
Electric |
|
Comments
|
Gearbox: Sequential with manual or automatic mode selectable by the user.
7 ratios in manual mode
3 mappings (Touring, Sport, Rain) in automatic mode.
Gear change by pedal or handlebar command.
The user can switch from automatic to sequential mode at any moment.
90°V engine, four valves per cylinder, Euro 3 compliant
Sequential gear change, electronic control with the possibility of manual operation with seven gears or automatic operation with three mappings.
Double spark plug ignition
Electronic fuel injection with single throttle body
Tank under seat
Helmet compartment for full-face helmet
Steel trellis frame with single-piece swingarm
43 mm upside down fork
Side shock absorber
Brakes with radial calipers
|
