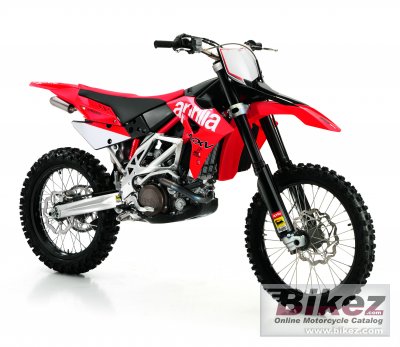

Aprilia MXV 4.5 20132013 Aprilia MXV 4.5 specifications, pictures, reviews and rating |
| Aprilia's profilation of this bike |
| Particular care has been taken over weight distribution. Weight has been centralised as far as possible to improve agility under all conditions. Weight reduction (one of the most important aspects of any motocross bike) was central to the design of every part of the MXV, from disc brake to frame. |
| General information | |
|---|---|
| Model | Aprilia MXV 4.5 |
| Year of manufacture | 2013 |
| Type | Cross / motocross |
| Rating |
Do you know this bike? Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission | |
| Engine size | 449.0 ccm (27.40 cubic inches) |
| Type of engine | V2, four-stroke |
| Engine details | Rocker operated exhaust valves, chain timing drive, titanium valves. |
| Maximum RPM | 12500 |
| Compression | 13.0:1 |
| Bore x stroke | 76.0 x 49.5 mm (3.0 x 1.9 inches) |
| Valves per cylinder | 4 |
| Fuel system | Injection. Integrated engine management system controlling ignition and fuel injection. Throttle body: 38 mm. Hard and soft mappings selectable from the handlebars. |
| Fuel control | Single Overhead Cams (SOHC) |
| Ignition | Electronic digital (batteryless). |
| Lubrication system | Dry sump. Separate gearbox lubrication. |
| Cooling system | Liquid |
| Gearbox | 4-speed |
| Transmission type | Chain (final drive) |
| Clutch | Multi-plate in oil bath, cable operated. |
| Driveline | Primary drive: Spur gears. Transmission ratio: 23/65. Final drive: Chain. Transmission ratio: 14/49. |
| Exhaust system | Conforming to FIM standards for 2009. |
| Chassis, suspension, brakes and wheels | |
| Frame type | Cr-Mo steel perimeter frame with aluminium alloy vertical members. Headstock rake angle 26.2°. Lightweight rear frame section. |
| Rake (fork angle) | 26.2° |
| Front suspension | 50 mm Marzocchi upside down fork with adjustments for compression and rebound. |
| Rear suspension | Pro-Link with Sachs monoshock, adjustable in compression and rebound. |
| Front tire | 80/100-21 |
| Rear tire | 110/90-19 |
| Front brakes | Single disc. Lightweight stainless steel floating disc with Nissin floating caliper. |
| Diameter | 270 mm (10.6 inches) |
| Rear brakes | Single disc. Stainless steel disc with Nissin floating caliper |
| Diameter | 240 mm (9.4 inches) |
| Wheels | Black anodised aluminium alloy. |
| Physical measures and capacities | |
| Seat height | 960 mm (37.8 inches) If adjustable, lowest setting. |
| Overall length | 2190 mm (86.2 inches) |
| Overall width | 815 mm (32.1 inches) |
| Wheelbase | 1499 mm (59.0 inches) |
| Fuel capacity | 7.40 litres (1.96 US gallons) |
| Other specifications | |
| Color options | Red |
| Starter | Kick |
| Electrical | 220 W generator |
