| General information |
|---|

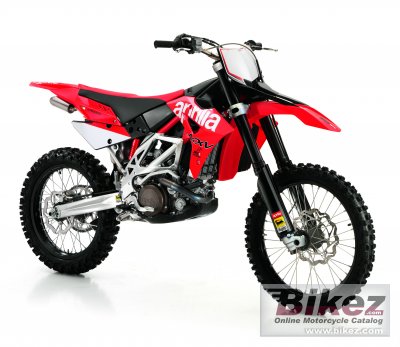

| Model: | Aprilia MXV 4.5 |
| Year: | 2012 |
| Category: | Cross / motocross |
| Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission |
|---|
| Displacement: | 449.00 ccm (27.40 cubic inches) |
| Engine type: | V2, four-stroke |
| Engine details: | Rocker operated exhaust valves, chain timing drive, 4 valve heads, titanium valves. |
| Max RPM: | 12500 |
| Compression: | 13.0:1 |
| Bore x stroke: | 76.0 x 49.5 mm (3.0 x 1.9 inches) |
| Fuel system: | Injection. Integrated engine management system controlling ignition and fuel injection. Throttle body: 38 mm. Hard and soft mappings selectable from the handlebars. |
| Fuel control: | Single Overhead Cams (SOHC) |
| Ignition: | Electronic digital (batteryless). |
| Lubrication system: | Dry sump. Separate gearbox lubrication. |
| Cooling system: | Liquid |
| Gearbox: | 4-speed |
Transmission type,
final drive: | Chain |
| Clutch: | Multi-plate in oil bath, cable operated. |
| Driveline: | Primary drive: Spur gears. Transmission ratio: 23/65. Final drive: Chain. Transmission ratio: 14/49. |
| Exhaust system: | Conforming to FIM standards for 2009. |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Cr-Mo steel perimeter frame with aluminium alloy vertical members. Headstock rake angle 26.2°. Lightweight rear frame section. |
| Rake (fork angle): | 26.2° |
| Front suspension: | 50 mm Marzocchi upside down fork with adjustments for compression and rebound. |
| Rear suspension: | Pro-Link with Sachs monoshock, adjustable in compression and rebound. |
| Front tyre: | 80/100-21 |
| Rear tyre: | 110/90-19 |
| Front brakes: | Single disc. Lightweight stainless steel floating disc with Nissin floating caliper. |
| Front brakes diameter: | 270 mm (10.6 inches) |
| Rear brakes: | Single disc |
| Rear brakes diameter: | 240 mm (9.4 inches) |
| Wheels: | Black anodised aluminium alloy. |
| Physical measures and capacities |
|---|
| Seat height: | 960 mm (37.8 inches) If adjustable, lowest setting. |
| Overall length: | 2,190 mm (86.2 inches) |
| Overall width: | 815 mm (32.1 inches) |
| Wheelbase: | 1,499 mm (59.0 inches) |
| Fuel capacity: | 7.40 litres (1.96 gallons) |
| Other specifications |
|---|
| Color options: | Red |
| Starter: | Kick |
| Electrical: | 220 W generator |
