| Aprilia's profilation of this bike |
| Elimination of the external oil tank and its connecting pipes has led to a further reduction in weight.
The starter motor has been eliminated for the same reason. Starting is by kick-start only in order to minimize weight. |
|
General information |
|
Model name
|

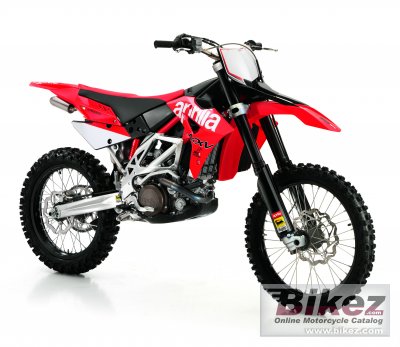

Aprilia MXV 4.5 |
|
Model year
|
2011 |
|
Category
|
Cross / motocross |
|
Rating
|
3.0 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
449.0 ccm (27.40 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Max RPM
|
12500 |
|
Compression
|
13.0:1 |
|
Bore x stroke
|
76.0 x 49.5 mm (3.0 x 1.9 inches) |
|
Fuel system
|
Injection. Integrated engine management system controlling ignition and fuel injection. Throttle body: 38 mm. Hard and soft mappings selectable from the handlebars. |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Ignition
|
Electronic digital (batteryless). |
|
Lubrication system
|
Dry sump. Separate gearbox lubrication. |
|
Cooling system
|
Liquid |
|
Gearbox
|
4-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Multi-plate in oil bath, cable operated. |
|
Driveline
|
Primary drive: Spur gears. Transmission ratio: 23/65. Final drive: Chain. Transmission ratio: 14/49. |
|
Exhaust system
|
Conforming to FIM standards for 2009. |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Cr-Mo steel perimeter frame with aluminium alloy vertical members. Headstock rake angle 26.2°. Lightweight rear frame section. |
|
Rake (fork angle)
|
26.2° |
|
Front suspension
|
50 mm Marzocchi upside down fork with adjustments for compression and rebound. |
|
Rear suspension
|
Pro-Link with Sachs monoshock, adjustable in compression and rebound. |
|
Front tire
|
80/100-21 |
|
Rear tire
|
110/90-19 |
|
Front brakes
|
Single disc |
|
Diameter
|
270 mm (10.6 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
240 mm (9.4 inches) |
|
Wheels
|
Black anodised aluminium alloy. |
|
Physical measures and capacities |
|
Seat height
|
960 mm (37.8 inches) If adjustable, lowest setting. |
|
Overall length
|
2190 mm (86.2 inches) |
|
Overall width
|
815 mm (32.1 inches) |
|
Wheelbase
|
1499 mm (59.0 inches) |
|
Fuel capacity
|
7.40 litres (1.96 US gallons) |
|
Other specifications |
|
Color options
|
Red |
|
Starter
|
Kick |
