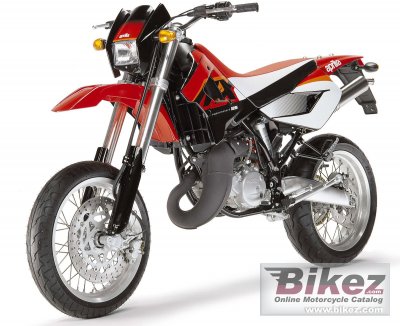

Aprilia MX 125 20042004 Aprilia MX 125 specifications, pictures, reviews and rating |
| General information | |
|---|---|
| Motorcycle name | Aprilia MX 125 |
| Year model | 2004 |
| Type | Enduro / offroad |
| Rating | 4.1 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 124.8 ccm (7.62 cubic inches) |
| Type of engine | Single cylinder, two-stroke |
| Engine details | Rotax 122: Aluminium cylinder with Nikasil coated liner. Reed valve intake. |
| Effect | 24.1 HP (17.6 kW)) @ 10500 RPM |
| Torque | 17.0 Nm (1.7 kgf-m or 12.5 ft.lbs) @ 10000 RPM |
| Top speed | 130.0 km/h (80.8 mph) |
| Compression | 12.5:1 |
| Bore x stroke | 54.0 x 54.5 mm (2.1 x 2.1 inches) |
| Fuel system | Carburettor. DellOrto PHBH 28 BD |
| Ignition | Nippondeso CDI 071000-0910 QCA91 |
| Lubrication system | Separate mixing with variable displacement, volumetric pump. |
| Cooling system | Liquid |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Clutch | Wet multi-plate |
| Driveline | Primary drive: Gearbox: 63/19 (3.32). Final drive: Chain: 15/45 (3.00). |
| Emission details | Euro 2, catalytic converter, secondary air system |
| Exhaust system | B-1176 e11 e3 |
| Chassis, suspension, brakes and wheels | |
| Frame type | Closed-cradle split at the level of the exhaust |
| Front suspension | 40 mm upside-down telescopic fork |
| Front wheel travel | 260 mm (10.2 inches) |
| Rear suspension | Aluminium swinging fork with rectangular cross-section |
| Rear wheel travel | 280 mm (11.0 inches) |
| Front tire | 110/70-ZR17 |
| Rear tire | 150/60-ZR17 |
| Front brakes | Single disc |
| Diameter | 320 mm (12.6 inches) |
| Rear brakes | Single disc |
| Diameter | 220 mm (8.7 inches) |
| Wheels | Spoke rims. Front 3.00 x 17, rear 4.25 x 17. |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 126.0 kg (277.8 pounds) |
| Seat height | 870 mm (34.3 inches) If adjustable, lowest setting. |
| Overall height | 1170 mm (46.1 inches) |
| Overall length | 2165 mm (85.2 inches) |
| Overall width | 890 mm (35.0 inches) |
| Ground clearance | 290 mm (11.4 inches) |
| Wheelbase | 1480 mm (58.3 inches) |
| Fuel capacity | 11.00 litres (2.91 US gallons) |
| Reserve fuel capacity | 1.30 litres (0.34 US gallons) |
| Oil capacity | 0.60 litres (0.63 US quarts) |
| Other specifications | |
| Color options | Matrix black |
| Starter | Kick |
| Comments | Type TZB00. |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | Check out our overview of motorcycle webshops at Bikez.info. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 04 Aprilia MX 125 discussion group or the general Aprilia discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
