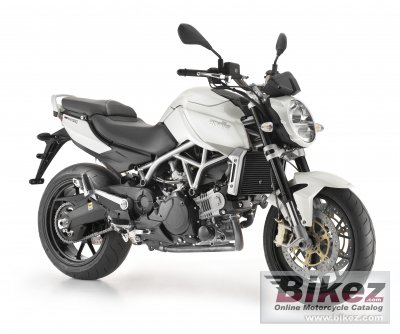

Aprilia Mana 850 ABS 20112011 Aprilia Mana 850 ABS specifications, pictures, reviews and rating |
| Aprilia's profilation of this bike |
| Radial calipers with 4 pistons are the state of the art for motorcycle brakes and ensure maximum active safety under all braking conditions. The generous front discs are 320 mm in diameter, the standard size for Aprilia’s big bikes, and are complemented by a single 260 mm rear disc. A sophisticated two channel ABS system maximises the Mana ABS’s already impressive levels of active and passive safety by preventing wheel lock on slippery surfaces and improving braking performance. |
| General information | |
|---|---|
| Motorcycle name | Aprilia Mana 850 ABS |
| Year model | 2011 |
| Type | Naked bike |
| Rating | 3.5 See the detailed rating of engine performance, design and look, accident risk, etc. Compare with any other motorcycle. |
| Engine and transmission | |
| Engine size | 839.3 ccm (51.21 cubic inches) |
| Type of engine | V2, four-stroke |
| Engine details | Aprilia 90° longitudinal V twin |
| Effect | 75.1 HP (54.8 kW)) @ 8000 RPM |
| Torque | 73.0 Nm (7.4 kgf-m or 53.8 ft.lbs) |
| Compression | 10.0:1 |
| Bore x stroke | 88.0 x 69.0 mm (3.5 x 2.7 inches) |
| Valves per cylinder | 4 |
| Fuel system | Injection. Integrated engine management system. Weber Marelli electronic fuel injection with one 38 mm throttle body |
| Ignition | Digital electronic ignition, with two spark plugs per cylinder, integrated with fuel injection system |
| Lubrication system | Dry sump with separate oil reservoir |
| Cooling system | Liquid |
| Gearbox | Automatic |
| Transmission type | Chain (final drive) |
| Clutch | Automatic |
| Driveline | Primary drive: Belt. Final drive: Chain |
| Exhaust system | Two in one system in 100% stainless steel with three-way catalytic converter and Lambda probe |
| Chassis, suspension, brakes and wheels | |
| Frame type | High strength steel trellis |
| Rake (fork angle) | 25.0° |
| Trail | 103 mm (4.1 inches) |
| Front suspension | 43 mm upside-down fork. |
| Front wheel travel | 120 mm (4.7 inches) |
| Rear suspension | Aluminium alloy single-piece swingarm. Hydraulic shock absorber adjustable in spring preload and rebound damping. |
| Rear wheel travel | 125 mm (4.9 inches) |
| Front tire | 120/70-17 |
| Rear tire | 180/55-17 |
| Front brakes | Double disc. ABS |
| Diameter | 320 mm (12.6 inches) |
| Rear brakes | Single disc. ABS |
| Diameter | 260 mm (10.2 inches) |
| Wheels | Luminium alloy. Front: 3.50 x 17´. Rear: 6.00 x 17´. |
| Physical measures and capacities | |
| Dry weight | 189.0 kg (416.7 pounds) |
| Power/weight ratio | 0.3974 HP/kg |
| Seat height | 800 mm (31.5 inches) If adjustable, lowest setting. |
| Overall height | 1130 mm (44.5 inches) |
| Overall length | 2080 mm (81.9 inches) |
| Overall width | 800 mm (31.5 inches) |
| Wheelbase | 1463 mm (57.6 inches) |
| Fuel capacity | 16.00 litres (4.23 US gallons) |
| Other specifications | |
| Color options | Red, white, black |
| Starter | Electric |
