| Aprilia's profilation of this bike |
| The Mana takes all the stress from motorcycling while injecting more satisfaction and more fun into riding under all conditions, from commuting to sports touring on the open road. All you need to do to enter a whole new world is press the button on the handlebars.
|
|
General information |
|
Model name
|

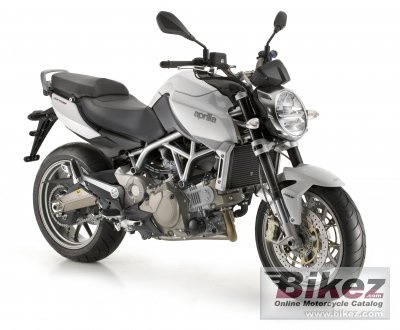

Aprilia Mana 850 ABS |
|
Year
|
2009 |
|
Category
|
Naked bike |
|
Rating
|
3.8 See the detailed rating of engine performance, design and look, accident risk, etc. Compare with any other motorcycle. |
|
Engine and transmission |
|
Displacement
|
839.3 ccm (51.21 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Power
|
75.1 HP (54.8 kW)) @ 8000 RPM |
|
Torque
|
73.0 Nm (7.4 kgf-m or 53.8 ft.lbs) @ 5000 RPM |
|
Compression
|
10.0:1 |
|
Bore x stroke
|
88.0 x 69.0 mm (3.5 x 2.7 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection. Integrated engine management system. Weber Marelli electronic fuel injection with one 38 mm throttle body. |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Ignition
|
Digital electronic ignition, with two spark plugs per cylinder, integrated with fuel injection system. |
|
Cooling system
|
Liquid |
|
Gearbox
|
Automatic |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Automatic |
|
Exhaust system
|
Two in one system in 100% stainless steel with three-way catalytic converter and Lambda probe. |
|
Chassis, suspension, brakes and wheels |
|
Rake (fork angle)
|
25.0° |
|
Trail
|
103 mm (4.1 inches) |
|
Front suspension
|
43 mm upside-down fork. Wheel travel: 120 mm. |
|
Rear suspension
|
Aluminium alloy single-piece swingarm. |
|
Front tire
|
120/70-17. |
|
Rear tire
|
180/55-17. |
|
Front brakes
|
Double disc |
|
Diameter
|
320 mm (12.6 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
260 mm (10.2 inches) |
|
Physical measures and capacities |
|
Dry weight
|
181.0 kg (399.0 pounds) |
|
Power/weight ratio
|
0.4149 HP/kg |
|
Seat height
|
800 mm (31.5 inches) If adjustable, lowest setting. |
|
Overall height
|
1130 mm (44.5 inches) |
|
Overall length
|
2080 mm (81.9 inches) |
|
Overall width
|
800 mm (31.5 inches) |
|
Wheelbase
|
1463 mm (57.6 inches) |
|
Fuel capacity
|
16.00 litres (4.23 US gallons) |
|
Other specifications |
|
Color options
|
Lead grey |
|
Comments
|
Gearbox with manual or automatic mode selectable by the user. 7 ratios in manual mode. 3 mappings (Touring, Sport, Rain) in automatic mode. |
