General information |
|
Model
|

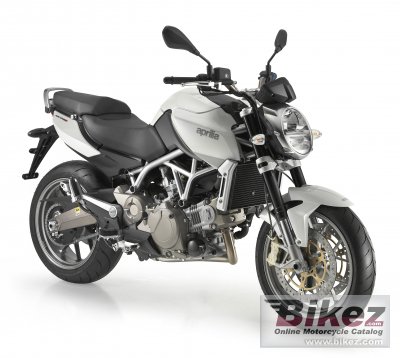

Aprilia Mana 850 |
|
Year model
|
2009 |
|
Type
|
Naked bike |
|
Rating
|
3.6 See the detailed rating of engine performance, design and look, accident risk, etc. Compare with any other motorcycle. |
|
Engine and transmission |
|
Engine size
|
839.0 ccm (51.20 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Effect
|
75.1 HP (54.8 kW)) @ 8000 RPM |
|
Torque
|
73.0 Nm (7.4 kgf-m or 53.8 ft.lbs) @ 5000 RPM |
|
Compression
|
10.0:1 |
|
Bore x stroke
|
88.0 x 69.0 mm (3.5 x 2.7 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection. Integrated engine management system. Weber Marelli electronic fuel injection with one 38 mm throttle body |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Ignition
|
Digital electronic ignition, with two spark plugs per cylinder, integrated with fuel injection system |
|
Lubrication system
|
Dry sump with separate oil reservoir |
|
Cooling system
|
Liquid |
|
Gearbox
|
Automatic |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Automatic |
|
Exhaust system
|
Two in one system in 100% stainless steel with three-way catalytic converter and Lambda probe |
|
Chassis, suspension, brakes and wheels |
|
Rake (fork angle)
|
25.0° |
|
Trail
|
103 mm (4.1 inches) |
|
Front suspension
|
43 mm upside-down fork. Wheel travel: 120 mm. |
|
Rear suspension
|
Aluminium alloy single-piece swingarm. Hydraulic shock absorber adjustable in spring preload and rebound damping. Wheel travel: 125 mm |
|
Front tire
|
120/70-17 |
|
Rear tire
|
180/55-17 |
|
Front brakes
|
Double disc |
|
Diameter
|
320 mm (12.6 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
260 mm (10.2 inches) |
|
Physical measures and capacities |
|
Dry weight
|
181.0 kg (399.0 pounds) |
|
Power/weight ratio
|
0.4149 HP/kg |
|
Seat height
|
800 mm (31.5 inches) If adjustable, lowest setting. |
|
Overall height
|
1130 mm (44.5 inches) |
|
Overall length
|
2080 mm (81.9 inches) |
|
Overall width
|
800 mm (31.5 inches) |
|
Wheelbase
|
1463 mm (57.6 inches) |
|
Fuel capacity
|
16.00 litres (4.23 US gallons) |
|
Other specifications |
|
Color options
|
Competition Black, Passion Red, Lead Grey, Couture Blue |
|
Starter
|
Electric |
|
Comments
|
Gearbox with manual or automatic mode selectable by the user. 7 ratios in manual mode. 3 mappings (Touring, Sport, Rain) in automatic mode. Gear change by pedal or handlebar control. The user can switch from automatic to sequential mode at any moment.
|
