General information |
|
Motorcycle name
|

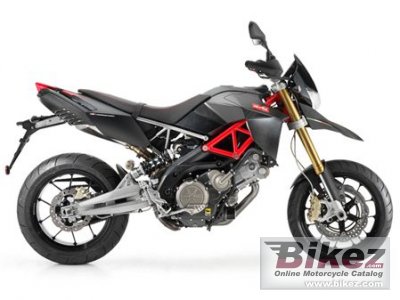

Aprilia Dorsoduro 750 Factory ABS |
|
Year of manufacture
|
2012 |
|
Type
|
Super motard |
|
Rating
|
3.2 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
749.9 ccm (45.76 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Engine details
|
Aprilia V90 longitudinal 90° V twin. Ride-by-Wire System. |
|
Output
|
90.3 HP (65.9 kW)) @ 8750 RPM |
|
Torque
|
82.0 Nm (8.4 kgf-m or 60.5 ft.lbs) |
|
Compression
|
11.0:1 |
|
Bore x stroke
|
92.0 x 56.4 mm (3.6 x 2.2 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection. Integrated engine management system. Electronic fuel injection with ride-by-wire electronic throttle control. |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Ignition
|
Digital electronic, integrated in the fuel injection system. |
|
Lubrication system
|
Wet sump. |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Hydraulically operated multi-plate wet clutch. |
|
Driveline
|
Primary drive: Spur gears. Transmission ratio 38/71 (1.87). Final drive: Chain. Transmission ratio 16/46. |
|
Exhaust system
|
Two in one system in 100% stainless steel with three-way catalytic converter and Lambda probe. |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Modular steel trellis secured to aluminium side plates by high strength bolts. Detachable rear frame. |
|
Rake (fork angle)
|
26.0° |
|
Trail
|
108 mm (4.3 inches) |
|
Front suspension
|
Multi-adjustable Sachs upside-down fork with Ø 43 mm diam. stanchions. |
|
Front wheel travel
|
160 mm (6.3 inches) |
|
Rear suspension
|
Aluminium alloy swingarm Gas-operated shock absorber with piggy back, with adjustable spring preload and compression and rebound damping. |
|
Rear wheel travel
|
160 mm (6.3 inches) |
|
Front tire
|
120/70-ZR17 |
|
Rear tire
|
180/55-ZR17 |
|
Front brakes
|
Double disc. Bremo |
|
Diameter
|
320 mm (12.6 inches) |
|
Rear brakes
|
Single disc. Bremo |
|
Diameter
|
240 mm (9.4 inches) |
|
Wheels
|
Aluminium alloy. Front: 3.50 x 17´. Rear: 6.00 x 17´. |
|
Physical measures and capacities |
|
Dry weight
|
185.0 kg (407.9 pounds) |
|
Power/weight ratio
|
0.4878 HP/kg |
|
Seat height
|
870 mm (34.3 inches) If adjustable, lowest setting. |
|
Overall height
|
1185 mm (46.7 inches) |
|
Overall length
|
2216 mm (87.2 inches) |
|
Overall width
|
905 mm (35.6 inches) |
|
Wheelbase
|
1505 mm (59.3 inches) |
|
Fuel capacity
|
12.00 litres (3.17 US gallons) |
|
Other specifications |
|
Color options
|
Nero Vulcano (black) |
|
Starter
|
Electric |
