General information |
|
Motorcycle name
|

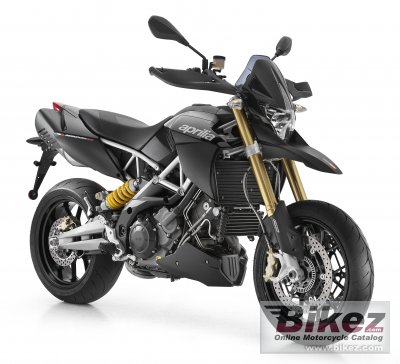

Aprilia Dorsoduro 1200 ABS |
|
Model year
|
2012 |
|
Category
|
Super motard |
|
Rating
|
3.4 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
1197.0 ccm (73.04 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Engine details
|
Longitudinal 90° V-twin |
|
Power output
|
130.0 HP (94.9 kW)) @ 8700 RPM |
|
Torque
|
115.0 Nm (11.7 kgf-m or 84.8 ft.lbs) @ 7500 RPM |
|
Compression
|
12.0:1 |
|
Bore x stroke
|
106.0 x 67.8 mm (4.2 x 2.7 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection. Integrated engine management system. Injection system with triple map Ride by Wire throttle management: Sport (S), Touring (T), Rain (R) |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Ignition
|
Digital electronic, integrated in the fuel injection system. |
|
Lubrication system
|
Wet sump |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Hydraulically operated multi-plate wet clutch. |
|
Driveline
|
Primary drive: Straight cut gears, drive ratio: 40/69. Final drive: Chain. Drive ratio: 16/40. |
|
Exhaust system
|
Stainless steel 2-into-2 exhaust system with dual catalytic converters and oxygen sensor. |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Modular tubular steel frame fastened to aluminium side plates by high strength bolts. Removable rear aluminium subframe |
|
Rake (fork angle)
|
27.3° |
|
Trail
|
118 mm (4.6 inches) |
|
Front suspension
|
Sachs upside-down front fork with fully adjustable compression and rebound damping and spring preload. Wheel travel 160 mm. |
|
Front wheel travel
|
160 mm (6.3 inches) |
|
Rear suspension
|
Aluminium alloy swingarm Piggy-back design Sachs hydraulic shock absorber with fully adjustable compression and rebound damping and spring preload. Wheel travel 155 mm. |
|
Rear wheel travel
|
155 mm (6.1 inches) |
|
Front tire
|
120/70-ZR17 |
|
Rear tire
|
180/55-ZR17 |
|
Front brakes
|
Double disc. ABS |
|
Diameter
|
320 mm (12.6 inches) |
|
Rear brakes
|
Single disc. ABS |
|
Diameter
|
240 mm (9.4 inches) |
|
Wheels
|
Aluminium alloy Front: 3.50 X 17´ Rear: 6.00 x 17´ |
|
Physical measures and capacities |
|
Seat height
|
870 mm (34.3 inches) If adjustable, lowest setting. |
|
Overall height
|
1205 mm (47.4 inches) |
|
Overall length
|
2248 mm (88.5 inches) |
|
Overall width
|
925 mm (36.4 inches) |
|
Wheelbase
|
1528 mm (60.2 inches) |
|
Fuel capacity
|
15.00 litres (3.96 US gallons) |
|
Reserve fuel capacity
|
3.50 litres (0.92 US gallons) |
|
Other specifications |
|
Color options
|
Black, white |
|
Starter
|
Electric |
