| General information |
|---|

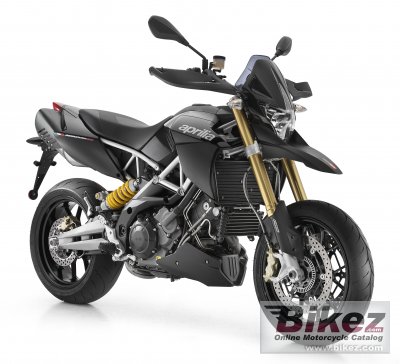

| Model: | Aprilia Dorsoduro 1200 ABS |
| Year: | 2011 |
| Category: | Super motard |
| Rating: | 70.4 out of 100. Show full rating and compare with other bikes |
| Engine and transmission |
|---|
| Displacement: | 1197.00 ccm (73.04 cubic inches) |
| Engine type: | V2, four-stroke |
| Engine details: | Longitudinal 90° V-twin |
| Power: | 128.74 HP (94.0 kW)) @ 8700 RPM |
| Torque: | 115.00 Nm (11.7 kgf-m or 84.8 ft.lbs) @ 7500 RPM |
| Compression: | 12.0:1 |
| Bore x stroke: | 106.0 x 67.8 mm (4.2 x 2.7 inches) |
| Valves per cylinder: | 4 |
| Fuel system: | Injection. Integrated engine management system. Injection system with triple map Ride by Wire throttle management: Sport (S), Touring (T), Rain (R) |
| Fuel control: | Double Overhead Cams/Twin Cam (DOHC) |
| Ignition: | Digital electronic, integrated in the fuel injection system. |
| Cooling system: | Liquid |
| Gearbox: | 6-speed |
Transmission type,
final drive: | Chain |
| Clutch: | Hydraulically operated multi-plate wet clutch. |
| Driveline: | Primary drive: Straight cut gears, drive ratio: 40/69. Final drive: Chain. Drive ratio: 16/40. |
| Exhaust system: | 100% stainless steel 2-into-2 exhaust system with dual catalytic converters and oxygen sensor. |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Modular tubular steel frame fastened to aluminium side plates by high strength bolts. Removable rear aluminium subframe |
| Rake (fork angle): | 27.3° |
| Trail: | 118 mm (4.6 inches) |
| Front suspension: | Sachs upside-down front fork with fully adjustable compression and rebound damping and spring preload. Wheel travel 160 mm. |
| Rear suspension: | Aluminium alloy swingarm Piggy-back design Sachs hydraulic shock absorber with fully adjustable compression and rebound damping and spring preload. Wheel travel 155 mm. |
| Front tyre: | 120/70-ZR17 |
| Rear tyre: | 180/55-ZR17 |
| Front brakes: | Double disc. ABS |
| Front brakes diameter: | 320 mm (12.6 inches) |
| Rear brakes: | Single disc. ABS |
| Rear brakes diameter: | 240 mm (9.4 inches) |
| Wheels: | Aluminium alloy Front: 3.50 X 17´ Rear: 6.00 x 17´ |
| Physical measures and capacities |
|---|
| Seat height: | 870 mm (34.3 inches) If adjustable, lowest setting. |
| Overall height: | 1,205 mm (47.4 inches) |
| Overall length: | 2,248 mm (88.5 inches) |
| Overall width: | 925 mm (36.4 inches) |
| Wheelbase: | 1,528 mm (60.2 inches) |
| Fuel capacity: | 15.00 litres (3.96 gallons) |
| Reserve fuel capacity: | 3.50 litres (0.92 gallons) |
| Other specifications |
|---|
| Color options: | Black, white |
