| Aprilia's profilation of this bike |
| A world that is moving faster every day needs vehicles that can keep up. And a world where open spaces are rapidly filling up needs vehicles that can nip through traffic, park on a sixpence, and carry maximum load in minimum dimensions. These are exactly the needs the Aprilia Atlantic Sprint is designed to satisfy.
|
| General information |
|---|

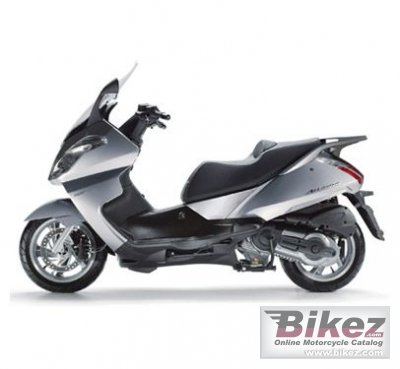

| Model: | Aprilia Atlantic 500 Sprint |
| Year: | 2009 |
| Category: | Scooter |
| Rating: | 69.3 out of 100. Show full rating and compare with other bikes |
| Engine and transmission |
|---|
| Displacement: | 460.00 ccm (28.07 cubic inches) |
| Engine type: | Single cylinder, four-stroke |
| Power: | 38.88 HP (28.4 kW)) @ 7500 RPM |
| Torque: | 43.00 Nm (4.4 kgf-m or 31.7 ft.lbs) @ 5500 RPM |
| Compression: | 10.5:1 |
| Valves per cylinder: | 4 |
| Fuel system: | Injection. Electronic fuel injection |
| Fuel control: | Single Overhead Cams (SOHC) |
| Ignition: | Electronic CDI with automatic advance |
| Lubrication system: | Wet sump. Forced lubrication with mechanical oil pump |
| Cooling system: | Liquid |
| Gearbox: | Automatic |
| Clutch: | Automatic centrifugal dry clutch |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | High-strength tubular steel frame with closed double cradle |
| Front suspension: | 35 mm hydraulic fork. Wheel travel 105 mm |
| Rear suspension: | Engine acting as swingarm. Two gas filled shock absorbers with 5 position spring preload adjustment. Wheel travel 90 mm |
| Front tyre: | 120/70-14 |
| Rear tyre: | 120/70-14 |
| Front brakes: | Single disc |
| Front brakes diameter: | 260 mm (10.2 inches) |
| Rear brakes: | Single disc |
| Rear brakes diameter: | 190 mm (7.5 inches) |
| Physical measures and capacities |
|---|
| Dry weight: | 199.0 kg (438.7 pounds) |
| Power/weight ratio: | 0.1954 HP/kg |
| Seat height: | 780 mm (30.7 inches) If adjustable, lowest setting. |
| Overall length: | 2,200 mm (86.6 inches) |
| Wheelbase: | 1,550 mm (61.0 inches) |
| Fuel capacity: | 15.00 litres (3.96 gallons) |
| Other specifications |
|---|
| Color options: | Excalibur Grey, Competition Black, Planet Blue |
| Further information |
|---|
