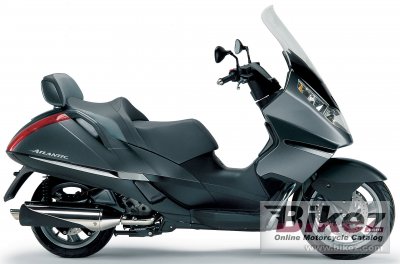

| Aprilia's profilation of this bike |
| Imagine moving through a new dimension, made up of 100% comfort, dynamism and avant-garde elegance. Imagine travelling where, how, when and with whoever you want, on the wave of brilliant performance and with the safety of complete control. All this and more in the Atlantic 500 - the new Aprilia maxi-scooter. |
| General information |
|---|
| Model | Aprilia Atlantic 500 |
| Year | 2005 |
| Category | Scooter |
| Rating | 3.7 View the detailed rating of value for money, design and look, reliability, etc. Compare with any other bike. |
| Engine and transmission |
|---|
| Displacement | 460.0 ccm (28.07 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Power | 29.0 HP (21.2 kW)) @ 7250 RPM |
| Torque | 40.0 Nm (4.1 kgf-m or 29.5 ft.lbs) @ 5500 RPM |
| Compression | 10.5:1 |
| Bore x stroke | 92.0 x 69.0 mm (3.6 x 2.7 inches) |
| Valves per cylinder | 4 |
| Fuel system | Injection. Electronic. |
| Fuel control | Single Overhead Cams (SOHC) |
| Ignition | Electronic |
| Lubrication system | Forced wet crankcase lubrication with trochoidal pump |
| Cooling system | Liquid |
| Gearbox | Automatic |
| Transmission type | Chain (final drive) |
| Clutch | Automatic centrifugal dry clutch |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type | High-tensile double-cradle tubular lattice with high flexional and torsional rigidity |
| Front suspension | Telescopic hydraulic fork, 40 mm dia. sleeves. |
| Front wheel travel | 110 mm (4.3 inches) |
| Rear suspension | Engine functions as swinging fork swingarm, linked to the frame by dual connecting rods and two radial silent blocks. Double hydraulic double-action shock absorber with preload adjustment |
| Front tire | 120/70-15 |
| Rear tire | 140/60-14 |
| Front brakes | Single disc |
| Diameter | 320 mm (12.6 inches) |
| Rear brakes | Single disc |
| Diameter | 220 mm (8.7 inches) |
| Physical measures and capacities |
|---|
| Seat height | 678 mm (26.7 inches) If adjustable, lowest setting. |
| Ground clearance | 250 mm (9.8 inches) |
| Other specifications |
|---|
| Color options | Hilton Blue, Magnet Grey |
| Starter | Electric |
