| General information |
|---|

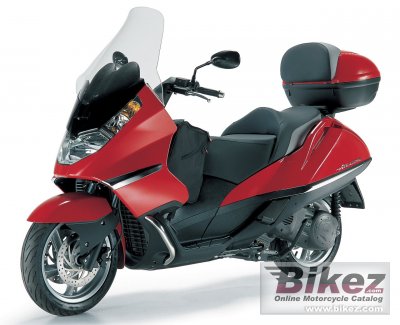

| Model | Aprilia Atlantic 500 |
| Year | 2004 |
| Category | Scooter |
| Rating | 3.4 View the detailed rating of value for money, design and look, reliability, etc. Compare with any other bike. |
| Engine and transmission |
|---|
| Displacement | 459.0 ccm (28.01 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Power | 39.0 HP (28.5 kW)) @ 7250 RPM |
| Torque | 40.0 Nm (4.1 kgf-m or 29.5 ft.lbs) @ 5500 RPM |
| Compression | 10.5:1 |
| Bore x stroke | 92.0 x 69.0 mm (3.6 x 2.7 inches) |
| Valves per cylinder | 4 |
| Fuel system | Injection |
| Fuel control | Single Overhead Cams (SOHC) |
| Cooling system | Liquid |
| Gearbox | 6-speed |
| Transmission type | Belt (final drive) |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type | High-tensile double-cradle tubular lattice |
| Front suspension | Telescopic hydraulic fork |
| Front wheel travel | 100 mm (3.9 inches) |
| Rear suspension | Engine functions as swinging fork swingarm |
| Rear wheel travel | 280 mm (11.0 inches) |
| Front tire | 120/70-15 |
| Rear tire | 140/60-14 |
| Front brakes | Double disc |
| Diameter | 260 mm (10.2 inches) |
| Rear brakes | Single disc |
| Diameter | 220 mm (8.7 inches) |
| Physical measures and capacities |
|---|
| Seat height | 770 mm (30.3 inches) If adjustable, lowest setting. |
| Overall height | 1450 mm (57.1 inches) |
| Overall length | 2250 mm (88.6 inches) |
| Overall width | 720 mm (28.3 inches) |
| Wheelbase | 1550 mm (61.0 inches) |
| Fuel capacity | 14.00 litres (3.70 US gallons) |
| Other specifications |
|---|
| Color options | Coast Blue, Lead Grey, Baroque Red, Atlantic Blue |
| Comments | Helmet compartment, 47 litres, holds 2 full-face helmets. Glove compartment behind shield. |
