| Aprilia's profilation of this bike |
| With the arrival of the new 400 cc engine, the Atlantic Sprint range offers more choice than ever, with not just one scooter but an entire family to choose from, all built to fulfil your every need, and all offering the legendary style and superb ride that have become trademarks of Aprilia motorcycles and scooters. |
|
General information |
|
Model
|

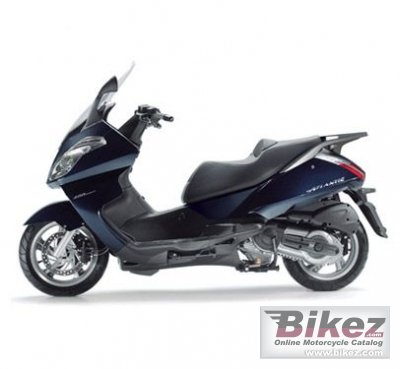

Aprilia Atlantic 400 Sprint |
|
Model year
|
2009 |
|
Category
|
Scooter |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Displacement
|
399.0 ccm (24.35 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Power output
|
33.5 HP (24.5 kW)) |
|
Compression
|
10.5:1 |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection. Electronic fuel injection |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Ignition
|
Electronic CDI with automatic advance |
|
Lubrication system
|
Wet sump. Forced lubrication with mechanical oil pump |
|
Cooling system
|
Liquid |
|
Gearbox
|
Automatic |
|
Clutch
|
Automatic centrifugal dry clutch |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
High-strength tubular steel frame with closed double cradle |
|
Front suspension
|
35 mm hydraulic fork. Wheel travel 105 mm |
|
Rear suspension
|
Engine acting as swingarm. Two gas filled shock absorbers with 5 position spring preload adjustment. Wheel travel 90 mm |
|
Front tire
|
120/70-14 |
|
Rear tire
|
120/70-14 |
|
Front brakes
|
Single disc |
|
Diameter
|
260 mm (10.2 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
190 mm (7.5 inches) |
|
Physical measures and capacities |
|
Dry weight
|
199.0 kg (438.7 pounds) |
|
Power/weight ratio
|
0.1684 HP/kg |
|
Seat height
|
780 mm (30.7 inches) If adjustable, lowest setting. |
|
Overall height
|
1370 mm (53.9 inches) |
|
Overall length
|
2200 mm (86.6 inches) |
|
Overall width
|
815 mm (32.1 inches) |
|
Wheelbase
|
1550 mm (61.0 inches) |
|
Fuel capacity
|
15.00 litres (3.96 US gallons) |
|
Other specifications |
|
Color options
|
Excalibur Grey, Competition Black, Planet Blue |
|
Starter
|
Electric |
