| General information |
|---|

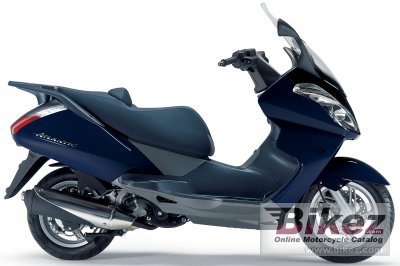

| Model | Aprilia Atlantic 250 |
| Year | 2005 |
| Category | Scooter |
| Rating | 3.7 View the detailed rating of value for money, design and look, reliability, etc. Compare with any other bike. |
| Engine and transmission |
|---|
| Displacement | 250.0 ccm (15.26 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Power | 22.8 HP (16.6 kW)) @ 8000 RPM |
| Torque | 20.2 Nm (2.1 kgf-m or 14.9 ft.lbs) @ 6500 RPM |
| Compression | 12.5:1 |
| Bore x stroke | 71.9 x 59.9 mm (2.8 x 2.4 inches) |
| Valves per cylinder | 4 |
| Fuel system | Injection |
| Fuel control | Single Overhead Cams (SOHC) |
| Ignition | Electronic CDI with automatic advance |
| Lubrication system | Wet sump. Forced lubrication with mechanical oil pump |
| Cooling system | Liquid |
| Gearbox | Automatic |
| Transmission type | Belt (final drive) |
| Clutch | Automatic centrifugal dry clutch |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type | High-tensile double-cradle tubular lattice with high flexional and torsional rigidity |
| Front suspension | 35 mm hydraulic fork. |
| Front wheel travel | 105 mm (4.1 inches) |
| Rear suspension | Engine assembly acting as swingarm. Double chamber hydraulic shock absorber with 5 positions for spring preload. |
| Rear wheel travel | 110 mm (4.3 inches) |
| Front tire | 110/90-13 |
| Rear tire | 130/70-13 |
| Front brakes | Single disc |
| Diameter | 320 mm (12.6 inches) |
| Rear brakes | Single disc |
| Diameter | 220 mm (8.7 inches) |
| Physical measures and capacities |
|---|
| Dry weight | 163.0 kg (359.4 pounds) |
| Weight incl. oil, gas, etc | 175.0 kg (385.8 pounds) |
| Power/weight ratio | 0.1398 HP/kg |
| Seat height | 678 mm (26.7 inches) If adjustable, lowest setting. |
| Overall length | 2100 mm (82.7 inches) |
| Ground clearance | 190 mm (7.5 inches) |
| Wheelbase | 1470 mm (57.9 inches) |
| Fuel capacity | 10.50 litres (2.77 US gallons) |
| Other specifications |
|---|
| Color options | Venice White, Blue Main, Magnet Grey |
| Starter | Electric |
