| Aprilia's profilation of this bike |
| The Aprilia Atlantic 125 i.e. features a dynamic new design, standard-setting performance and the active riding style that typifies all Aprilias. |
|
General information |
|
Motorcycle name
|

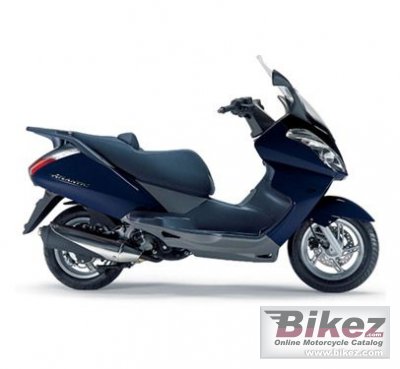

Aprilia Atlantic 125 i.e. |
|
Year
|
2009 |
|
Category
|
Scooter |
|
Rating
|
2.9 View the detailed rating of value for money, design and look, reliability, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
124.0 ccm (7.57 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Compression
|
10.5:1 |
|
Valves per cylinder
|
4 |
|
Fuel control
|
Overhead Cams (OHC) |
|
Ignition
|
Electronic CDI with automatic advance. |
|
Lubrication system
|
Wet sump. Forced lubrication with mechanical oil pump |
|
Cooling system
|
Liquid |
|
Gearbox
|
Automatic |
|
Clutch
|
Automatic centrifugal dry clutch |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
High-strength tubular steel frame with closed double cradle |
|
Front suspension
|
35 mm hydraulic fork. Wheel travel 90 mm. |
|
Rear suspension
|
Engine assembly acting as swingarm. Double chamber hydraulic shock absorber with 5 positions for spring preload. Wheel travel 100 mm. |
|
Front tire
|
110/90-13 |
|
Rear tire
|
130/70-13 |
|
Front brakes
|
Single disc |
|
Diameter
|
240 mm (9.4 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
190 mm (7.5 inches) |
|
Physical measures and capacities |
|
Dry weight
|
199.0 kg (438.7 pounds) |
|
Seat height
|
770 mm (30.3 inches) If adjustable, lowest setting. |
|
Overall height
|
1400 mm (55.1 inches) |
|
Overall length
|
2100 mm (82.7 inches) |
|
Overall width
|
900 mm (35.4 inches) |
|
Wheelbase
|
1470 mm (57.9 inches) |
|
Fuel capacity
|
10.50 litres (2.77 US gallons) |
|
Other specifications |
|
Color options
|
Blue, black |
|
Starter
|
Electric |
