Aprilia Atlantic 125 20052005 Aprilia Atlantic 125 specifications, pictures, reviews and rating |

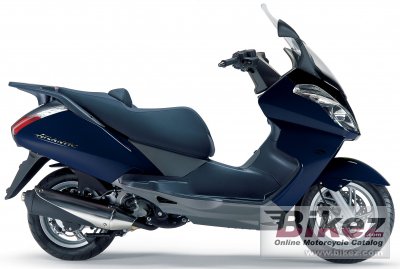

![]() 2005 Aprilia Atlantic 125. Picture credits - Aprilia. Submit more pictures.
|
General information | |
---|---|
Model: | Aprilia Atlantic 125 |
Year: | 2005 |
Category: | Scooter |
Rating: | 3.6 View the detailed rating of value for money, design and look, reliability, etc. Compare with any other bike. |
Engine and transmission | |
Displacement: | 124.0 ccm (7.57 cubic inches) |
Engine type: | Single cylinder, four-stroke |
Power: | 14.8 HP (10.8 kW)) @ 9500 RPM |
Torque: | 12.0 Nm (1.2 kgf-m or 8.9 ft.lbs) @ 8000 RPM |
Compression: | 12.5:1 |
Bore x stroke: | 57.0 x 48.6 mm (2.2 x 1.9 inches) |
Valves per cylinder: | 4 |
Fuel system: | Injection |
Fuel control: | Single Overhead Cams (SOHC) |
Ignition: | Electronic CDI with automatic advance |
Lubrication system: | Wet sump. Forced lubrication with mechanical oil pump |
Cooling system: | Liquid |
Gearbox: | Automatic |
Transmission type, final drive: | Chain |
Clutch: | Automatic centrifugal dry clutch |
Chassis, suspension, brakes and wheels | |
Frame type: | High-tensile double-cradle tubular lattice with high flexional and torsional rigidity |
Front suspension: | 35 mm hydraulic fork. |
Front wheel travel: | 105 mm (4.1 inches) |
Rear suspension: | Engine assembly acting as swingarm. Double chamber hydraulic shock absorber with 5 positions for spring preload. Wheel travel 110 mm. |
Front tyre: | 110/90-13 |
Rear tyre: | 130/70-13 |
Front brakes: | Single disc |
Diameter: | 320 mm (12.6 inches) |
Rear brakes: | Single disc |
Diameter: | 220 mm (8.7 inches) |
Physical measures and capacities | |
Seat height: | 678 mm (26.7 inches) If adjustable, lowest setting. |
Ground clearance: | 250 mm (9.8 inches) |
Wheelbase: | 770 mm (30.3 inches) |
Other specifications | |
Color options: | Venice White, Blue Main, Magnet Grey |
Starter: | Electric |
Further information | |
Insurance costs | Compare US insurance quotes from the nation's top providers. |
Finance options | Compare US motorcycle loan quotes from the nation's top providers. |
Parts finder |
Chaparral provides online schematics & OEM parts |
Ask questions | Join the 05 Aprilia Atlantic 125 discussion group or the general Aprilia discussion group. |
Related bikes | List related bikes for comparison of specs. |
Sell or buy used bikes?Bikez.biz has an efficient motorcycle classifieds. Ads are free. Click here to sell a used 2005 Aprilia Atlantic 125 or advertise any other MC for sale. You can list all 2005 Aprilia Atlantic 125 available and also sign up for e-mail notification when such bikes are advertised in the future. Bikez has a high number of users looking for used bikes. Before you buy this bike, you should view the list of related motorbikes Compare technical specs. Look at photos. And check out the rating of the bike's engine performance, repair costs, etc. |
|
Rating sample for this Aprilia bike | |
Racing track capabilities for the 2005 Aprilia Atlantic 125:![]() ![]() Click here for complete rating. You can also compare bikes. |
![]() |
